Ford
>>
2007
>>
Mustang V8-5.4L SC VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

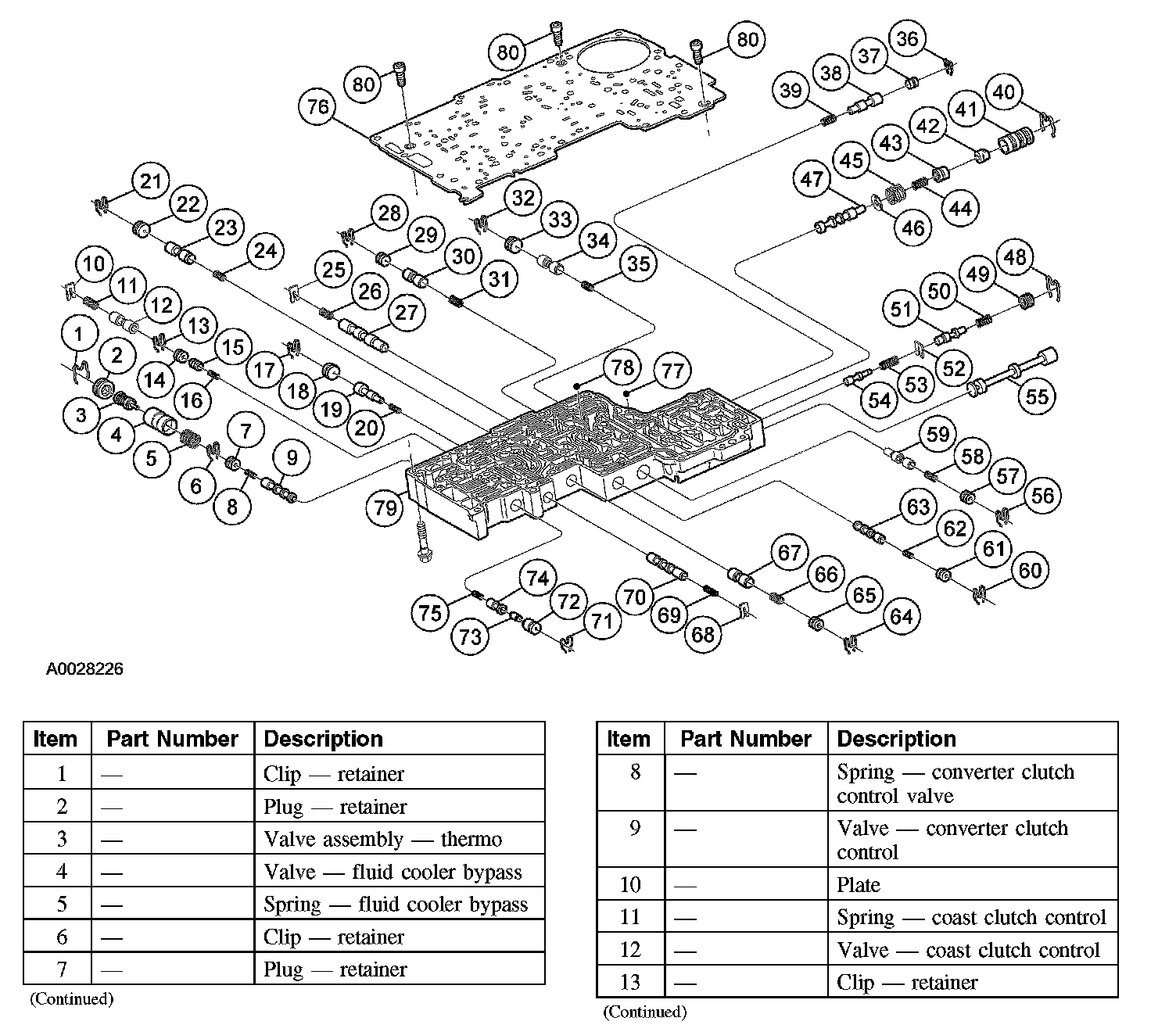

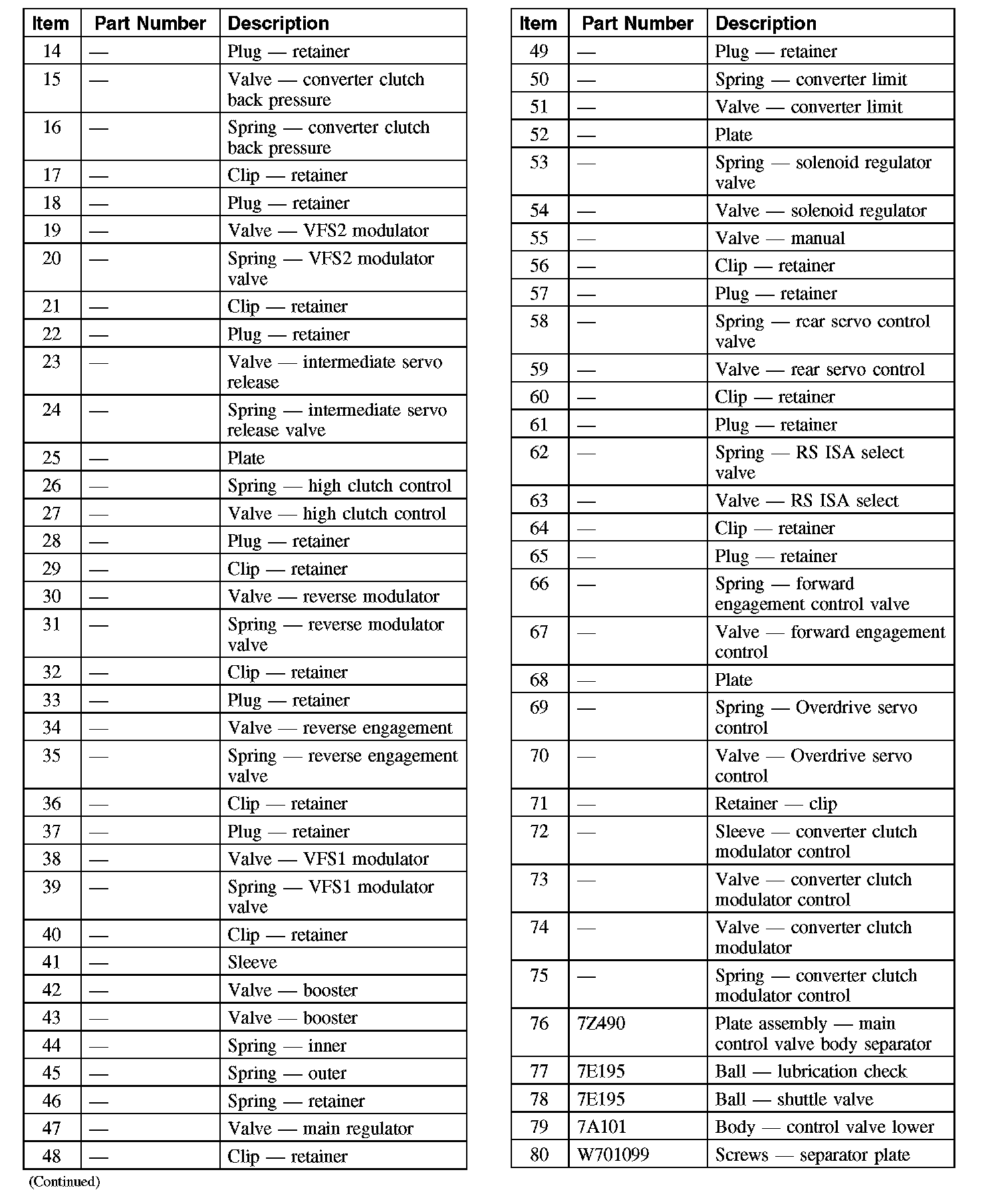

Main Control Valve Body
