Home
>>
Ford
>>
2007
>>
Mustang V8-5.4L SC VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>
Subwoofer Amplifier, Right Front Channel
Subwoofer Amplifier, Right Front Channel

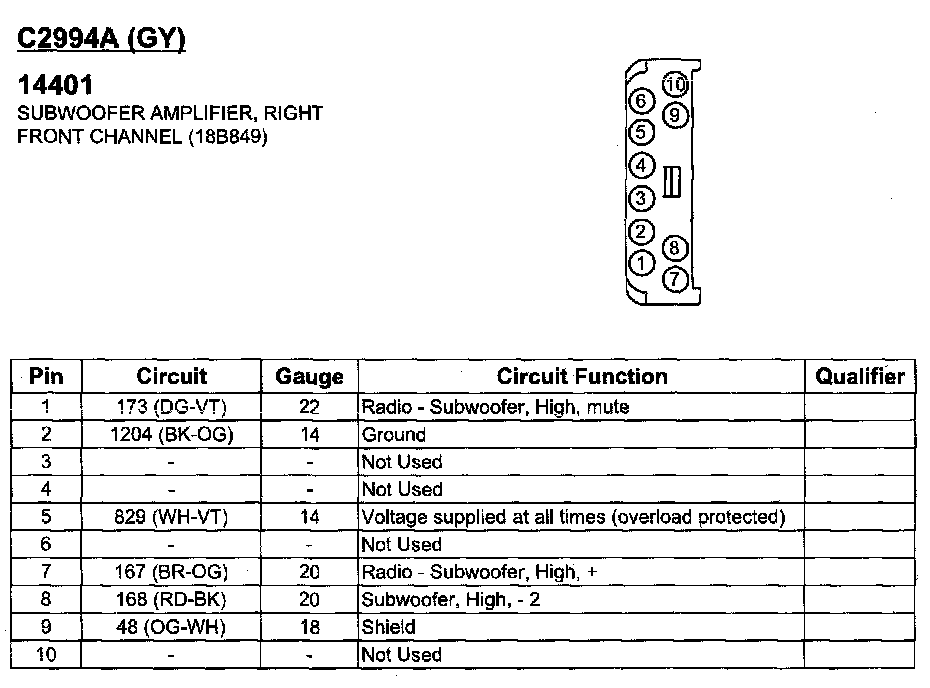

C2994A:

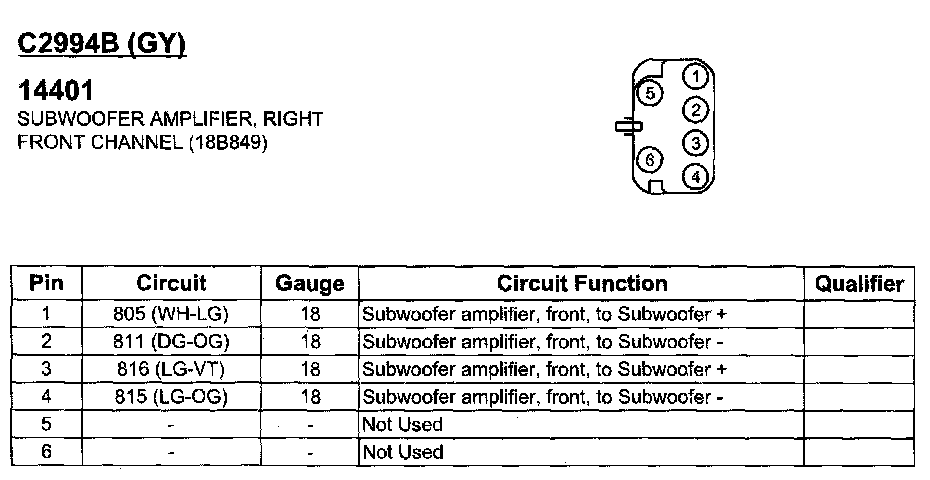

C2994B:
