Antenna, Navigation: Service and Repair

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA







Removal and Installation
1. Remove the audio unit.
2. Remove the instrument cluster.

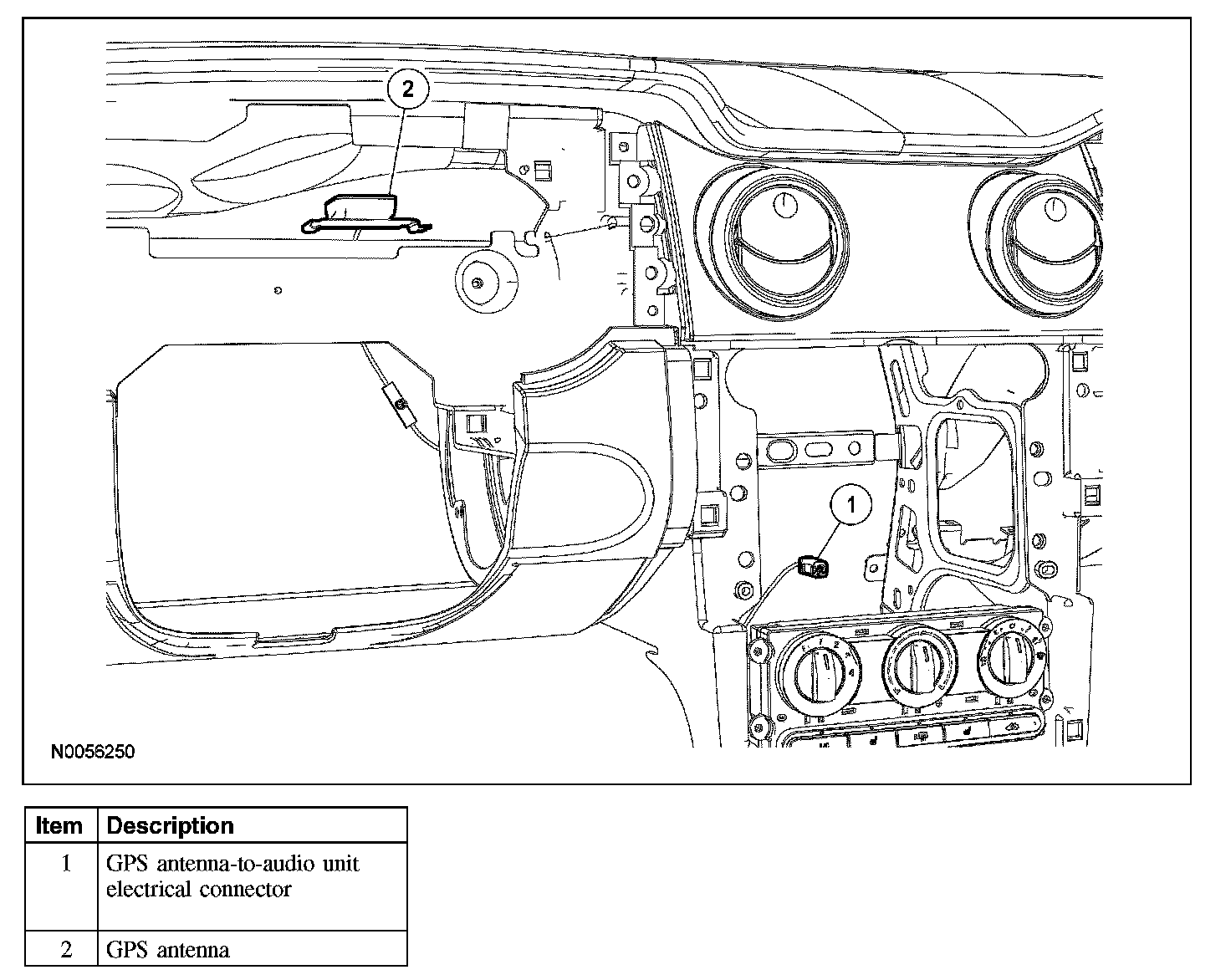

3. Release the antenna cable locators and remove the GPS antenna.
4. To install, reverse the removal procedure.
