Drive Belt

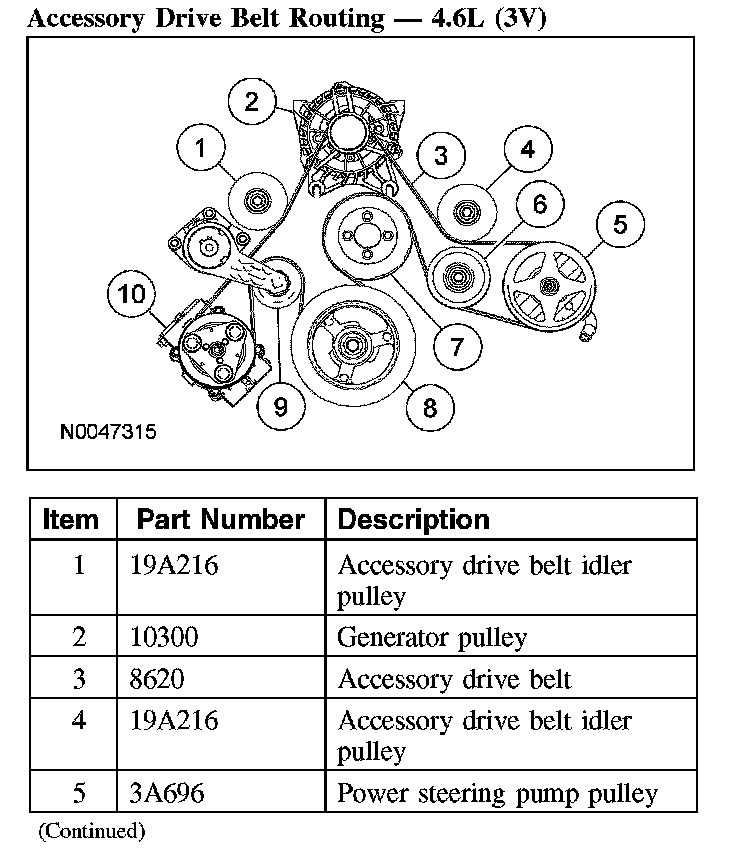

Accessory Drive Belt Routing - 4.6L (3V):

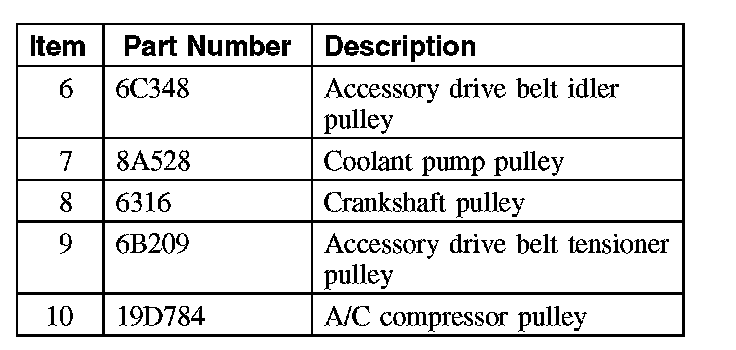

Accessory Drive Belt Routing - 4.6L (3V):
Supercharger Belt Routing - 5.4L (4V):
