Home >> Ford >> 2007 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

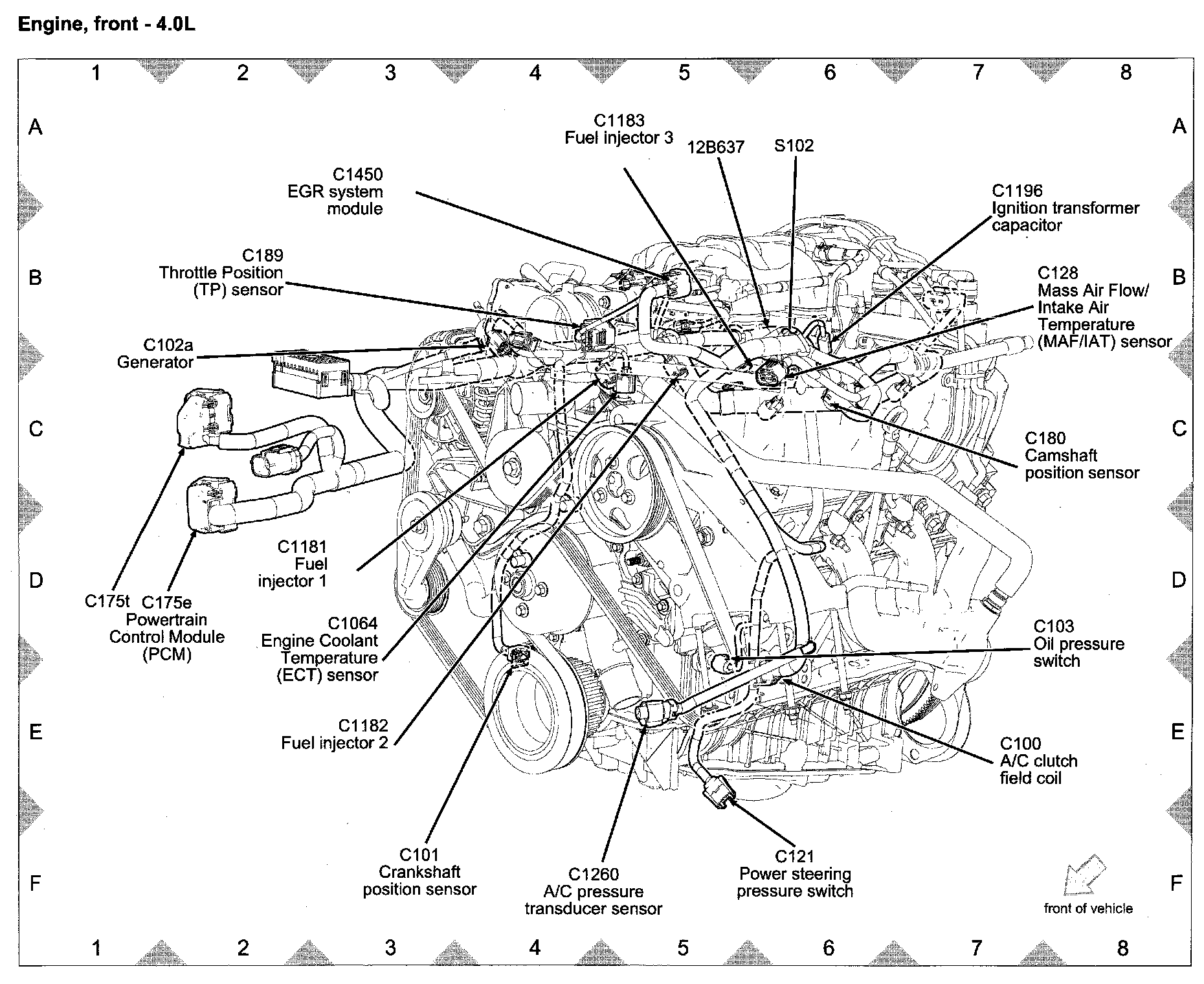

View 151-4 (Engine, Front - 4.0L):
