Home >> Ford >> 2007 >> Fusion FWD L4-2.3L VIN Z >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FNR5 - Automatic Transaxle/Transmission >> Transaxle Main Valve Body Vehicle Harness Connector C1534

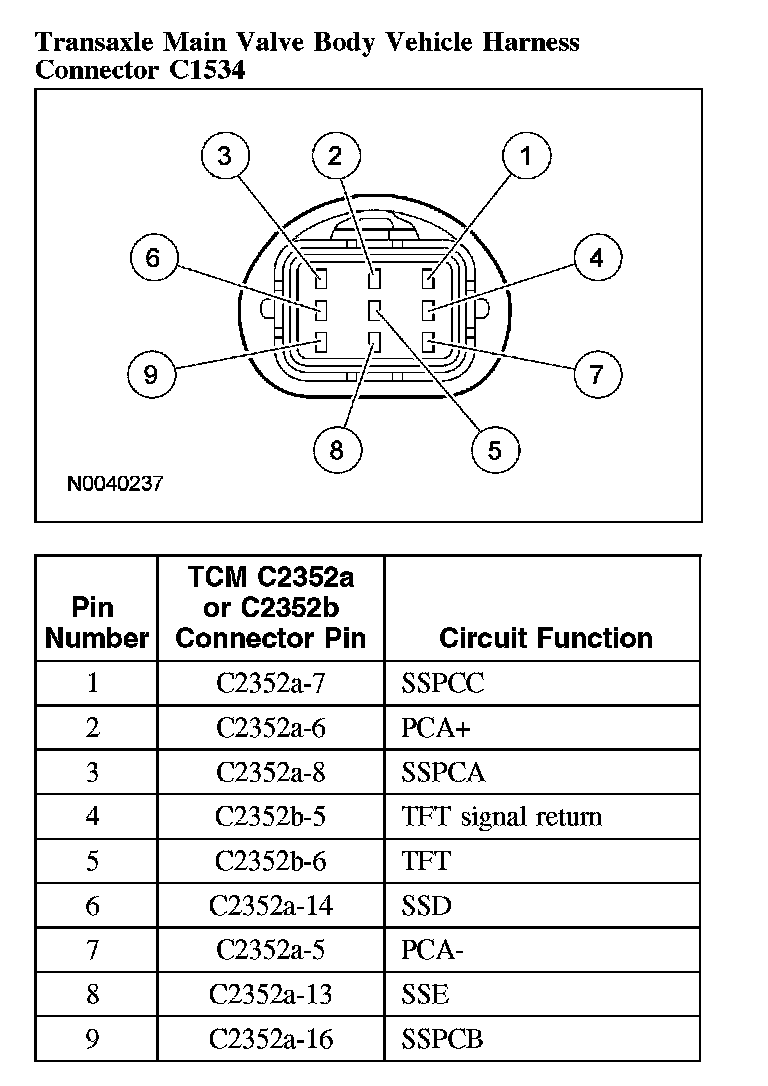

Transaxle Main Valve Body Vehicle Harness Connector C1534

Transaxle Main Valve Body Vehicle Harness Connector C1534:
