Home >> Ford >> 2007 >> Fusion FWD L4-2.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

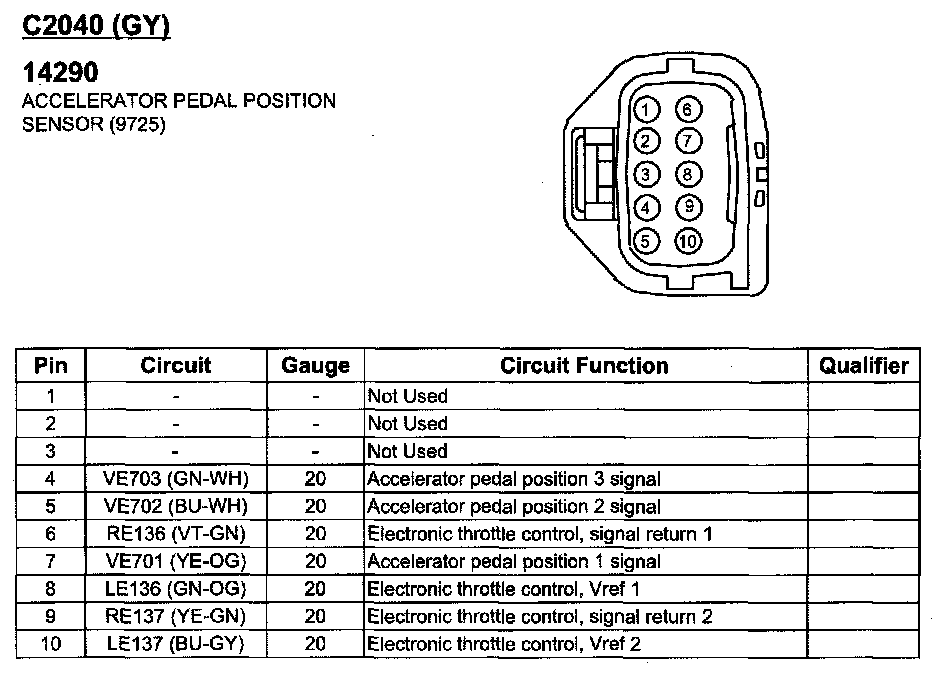

Accelerator Pedal Position Sensor: Diagrams

C2040:
