Ford
>>
2007
>>
Fusion AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

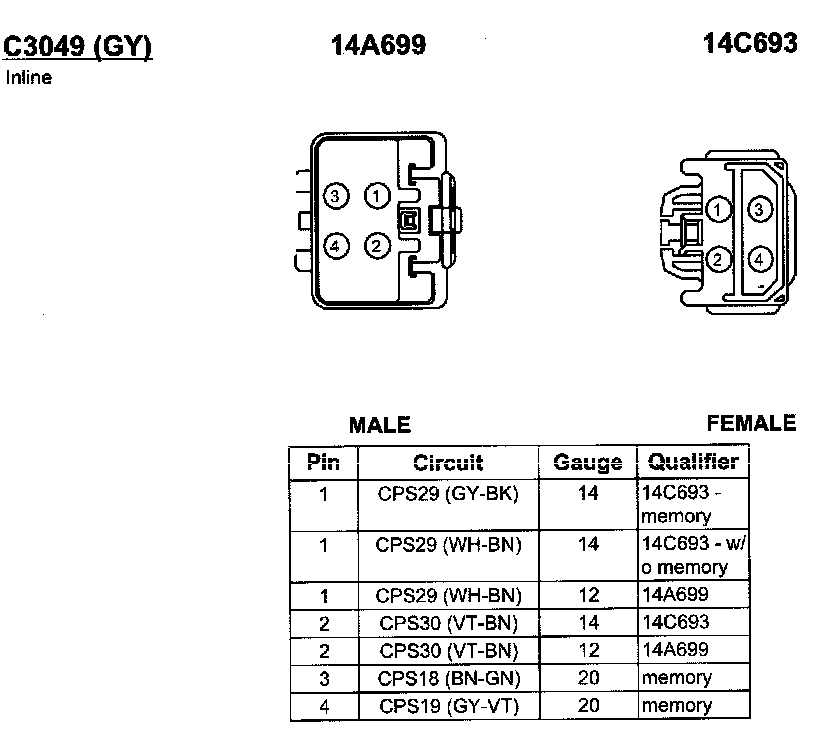

Multiple Junction Connector
>>
C3049
C3049
C3049:
