Fusion AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>

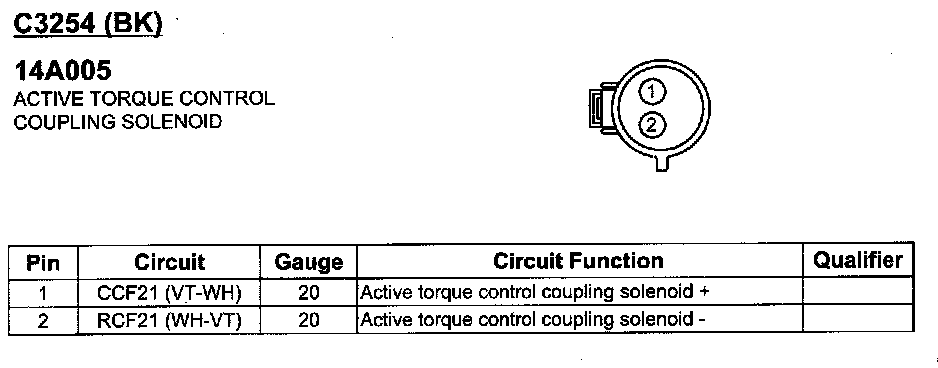

Active Torque Control Coupling Solenoid
Active Torque Control Coupling Solenoid
C3254:
