Fusion AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module
C310A:

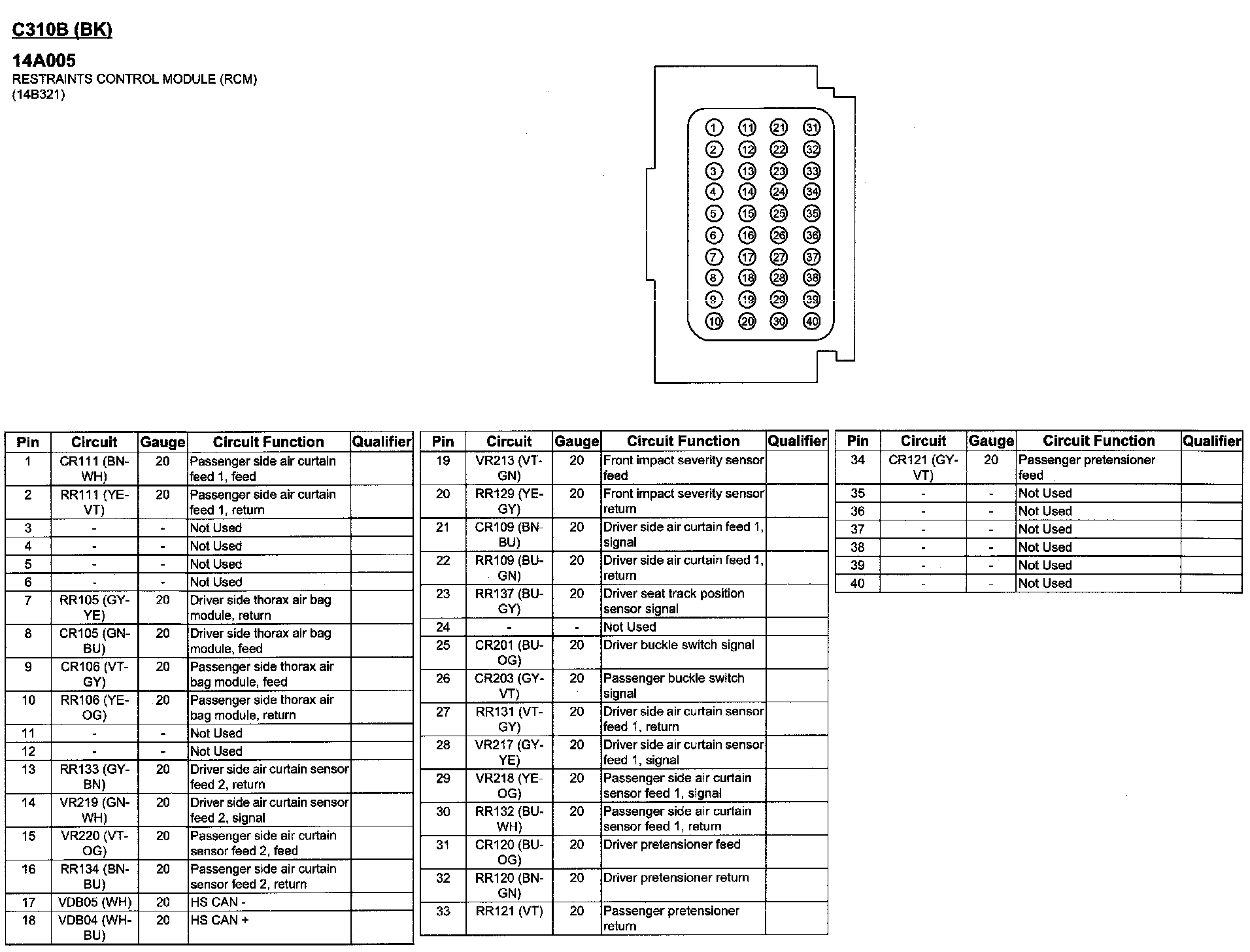

C310B:
