Lower Arm - Rear

Lower Arm - Rear

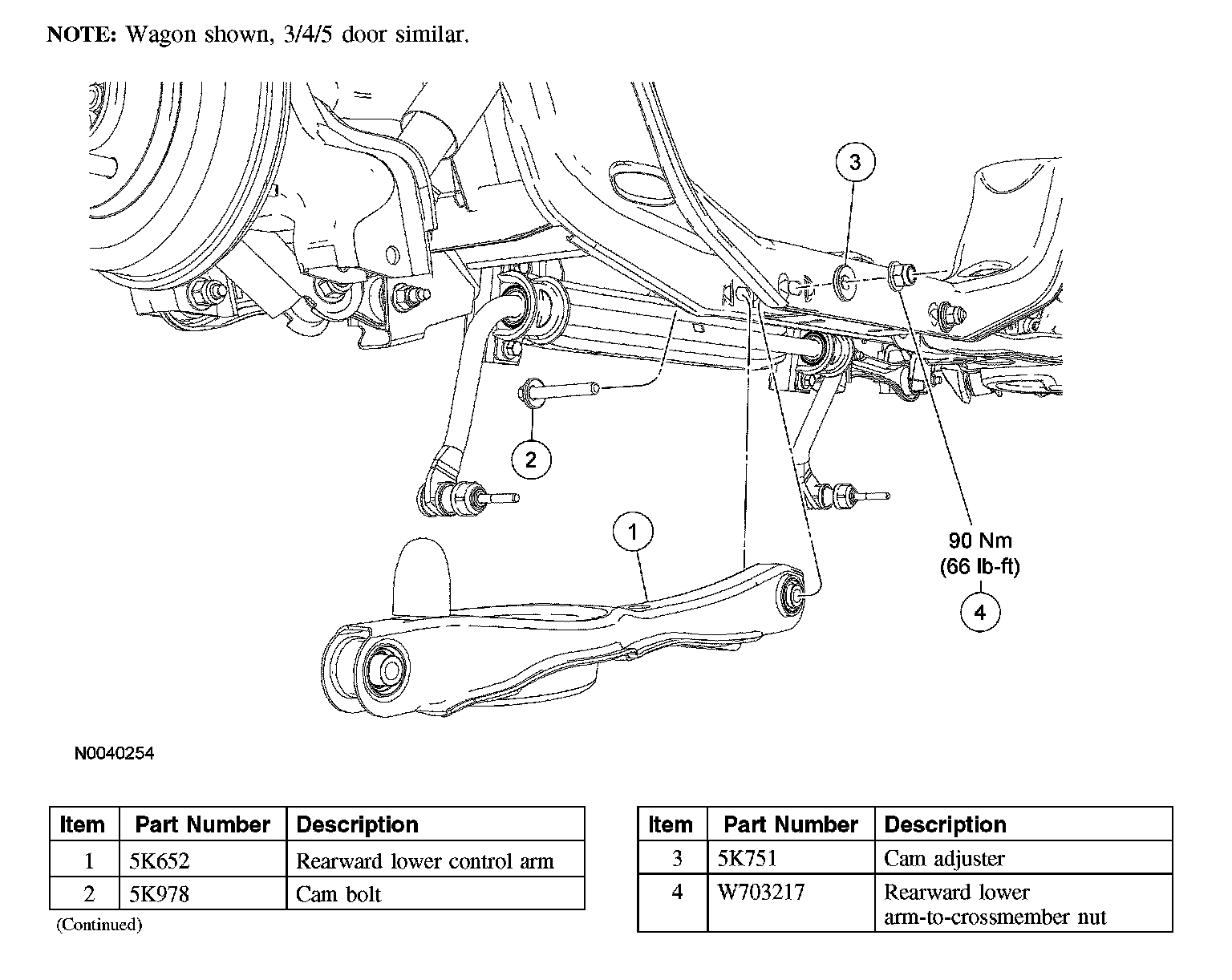

NOTE: Wagon shown, 3/4/5 door similar.:

Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital parts and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

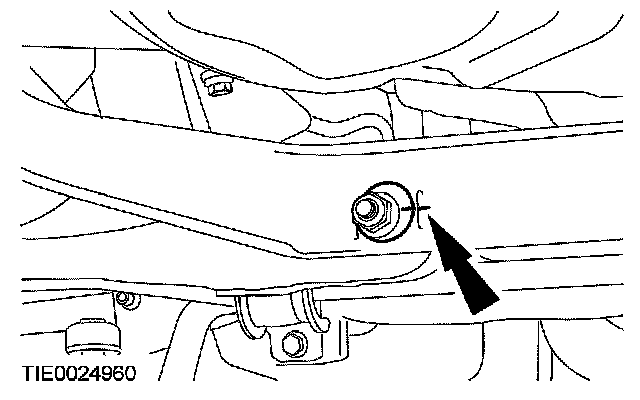

1. Mark the position of the rearward lower arm adjustment cam to the crossmember.





2. Remove the spring.
3. Remove and discard the lower arm-to-crossmember nut, then remove the cam adjuster, cam bolt and the lower arm.

Installation

1. NOTE: Align the mark on the rearward lower arm adjustment cam to the mark on the crossmember.

NOTE: Do not fully tighten the rearward lower arm-to-crossmember nut at this time.

Position the rear lower arm and install the cam bolt, cam adjuster and nut.
^ Tighten the nut until snug.
2. Install the spring.

3. NOTE: Final tightening of the rear suspension components should be carried out with the suspension at curb height.

Tighten the rearward lower arm-to-crossmember nut to 90 Nm (66 ft. lbs.).
4. Check and, if necessary, adjust the rear toe. For additional information, refer to Suspension System - General Information.
