Tie Rod - Outer

Tie Rod - Outer

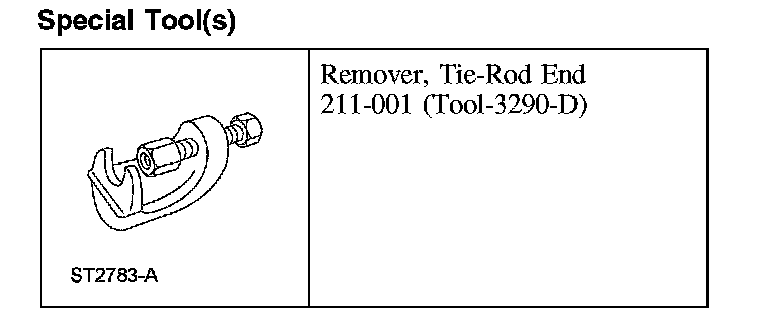

Special Tool(s):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

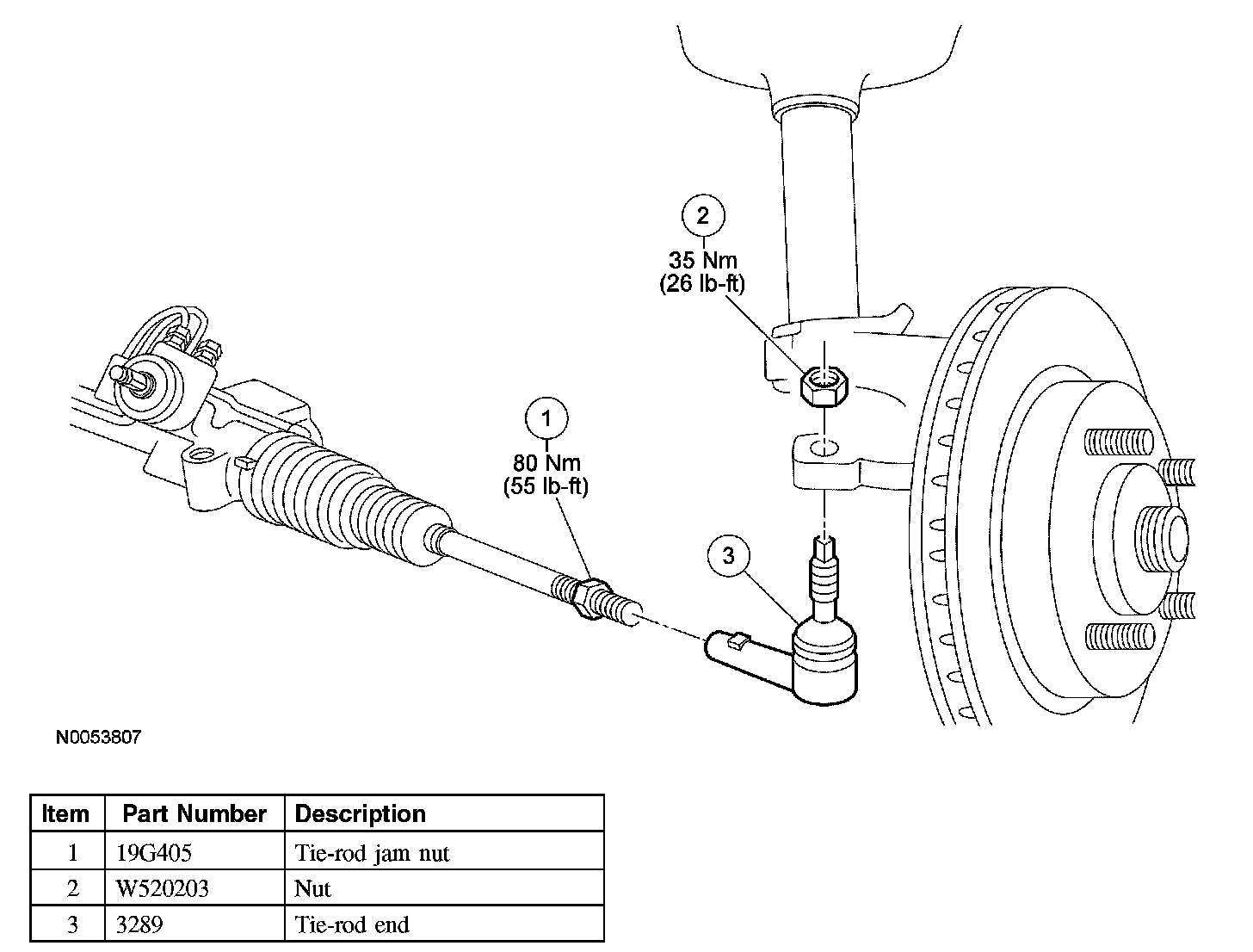

2. Loosen the tie-rod jam nut.
^ To install, tighten to 80 Nm (55 ft. lbs.).

3. CAUTION: Use the hex-holding feature to prevent turning of the stud while removing the nut.

Remove and discard the outer tie rod-to-wheel knuckle nut.
^ To install, tighten to 35 Nm (26 ft. lbs.).

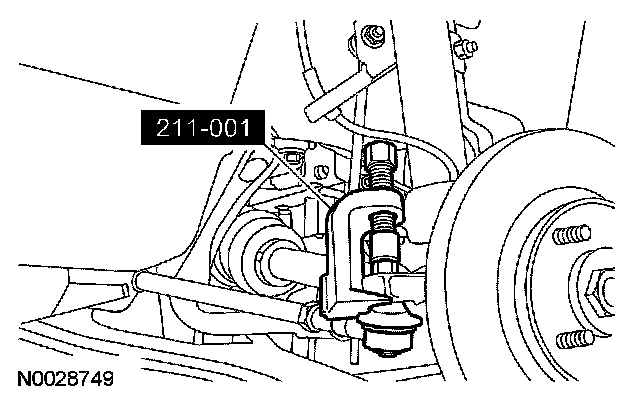

4. Using the special tool, disconnect the outer tie rod end from the wheel knuckle.





5. NOTE: Record the number of turns required to remove the outer tie-rod.

Remove the tie rod.

6. WARNING: Install a new tie rod-to-wheel knuckle nut. Failure to follow these instructions may result in personal injury.

To install reverse removal procedure.
7. Check and, if necessary, align the front end. For additional information, refer to Suspension System - General Information.
