Air Door Actuator / Motor: Service and Repair

MODE DOOR ACTUATOR - AIR INLET DOOR






Removal and Installation
1. Lower the glove compartment.

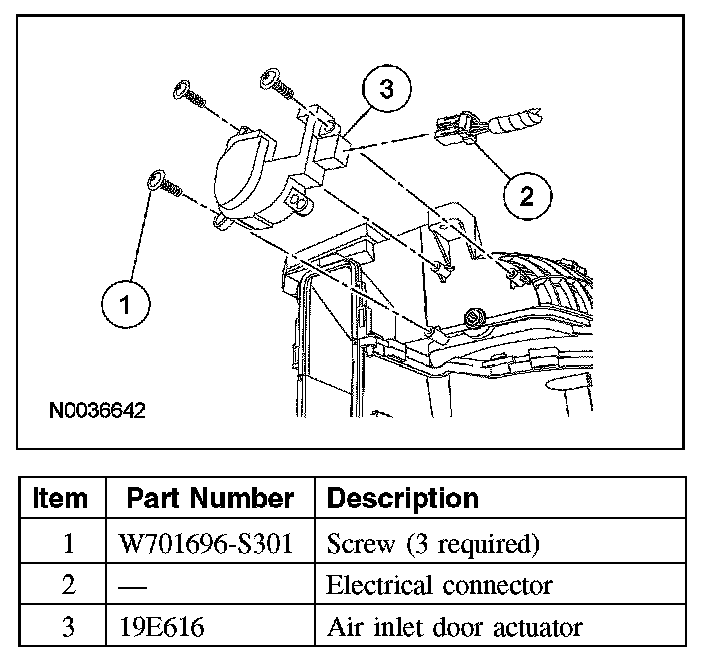

2. Remove the air inlet mode door actuator.
1 Disconnect the air inlet mode door actuator electrical connector.
2 Remove the 3 screws.
3 Remove the air inlet mode door actuator.
3. To install, reverse the removal procedure.
