Engine Mount: Service and Repair

Engine Mount

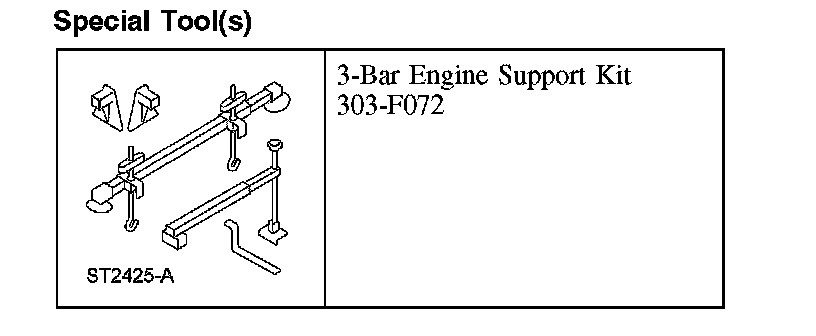

Special Tool(s):

Removal and Installation

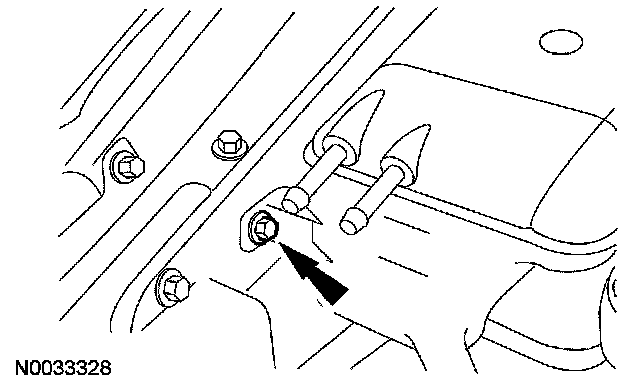

1. Remove the expansion tank bolt.
^ To install, tighten to 10 Nm (89 inch lbs.).

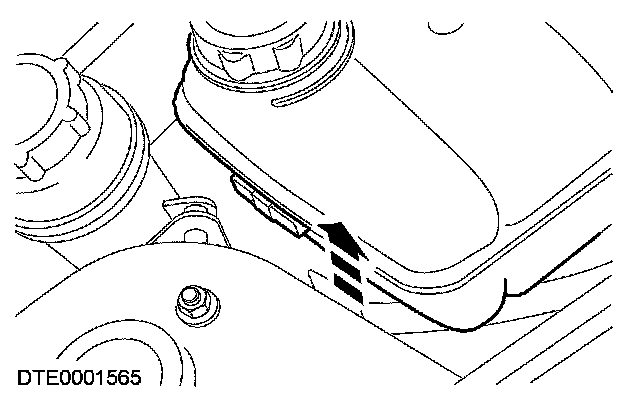

2. Lift the coolant expansion tank out of the retainer and position it aside.

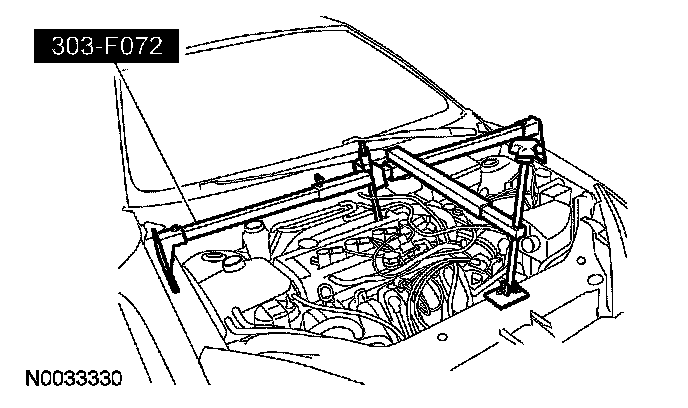

3. Install the special tool.

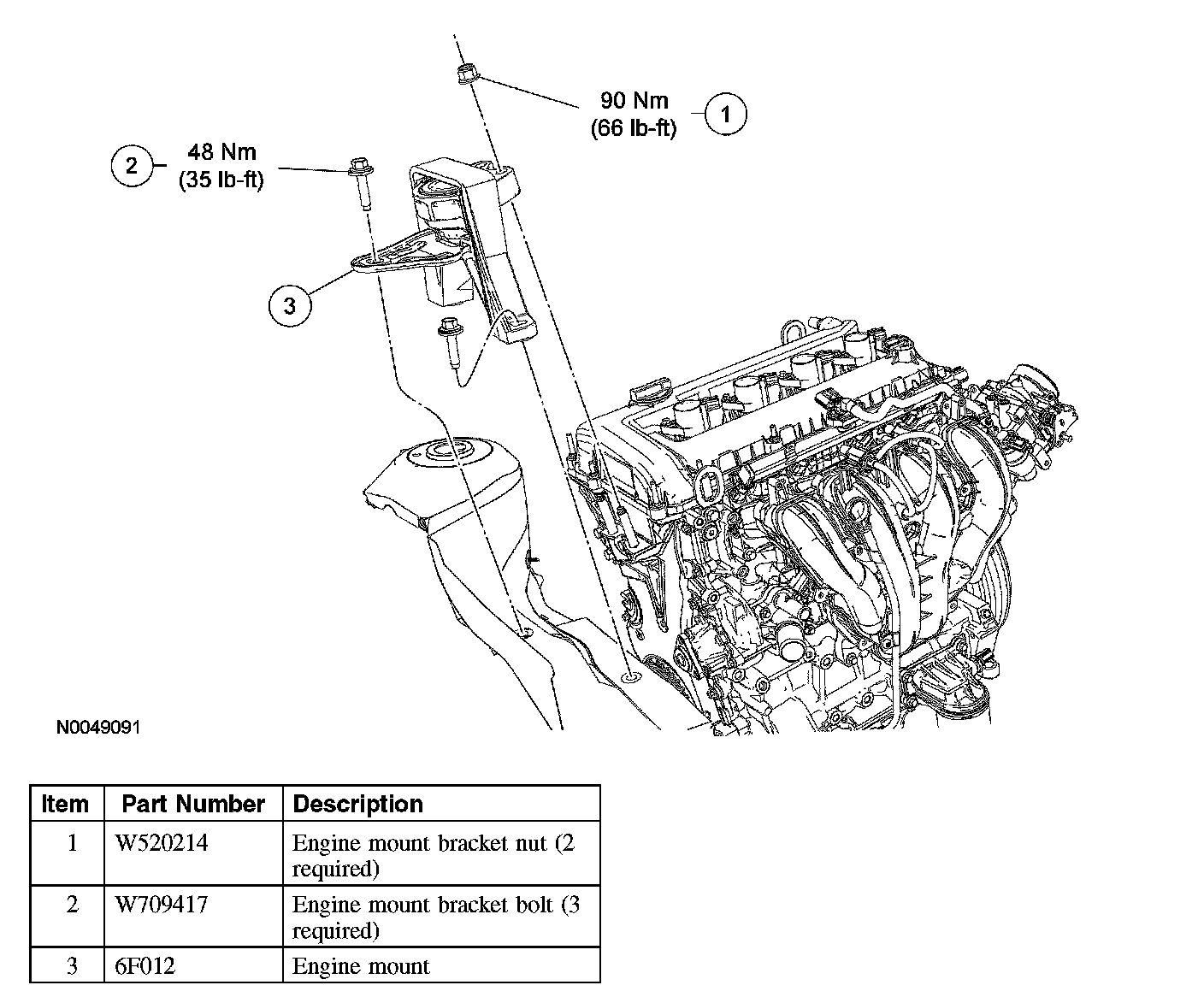

4. Remove the 2 engine mount nuts.
^ To install, tighten to 90 Nm (66 ft. lbs.).
5. Remove the 3 bolts and the engine mount.
^ To install, tighten to 48 Nm (35 ft. lbs.).
6. To install, reverse the removal procedure.
