Home
>>
Ford
>>
2007
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
>>
Low Speed Engine Cooling Fan Relay A

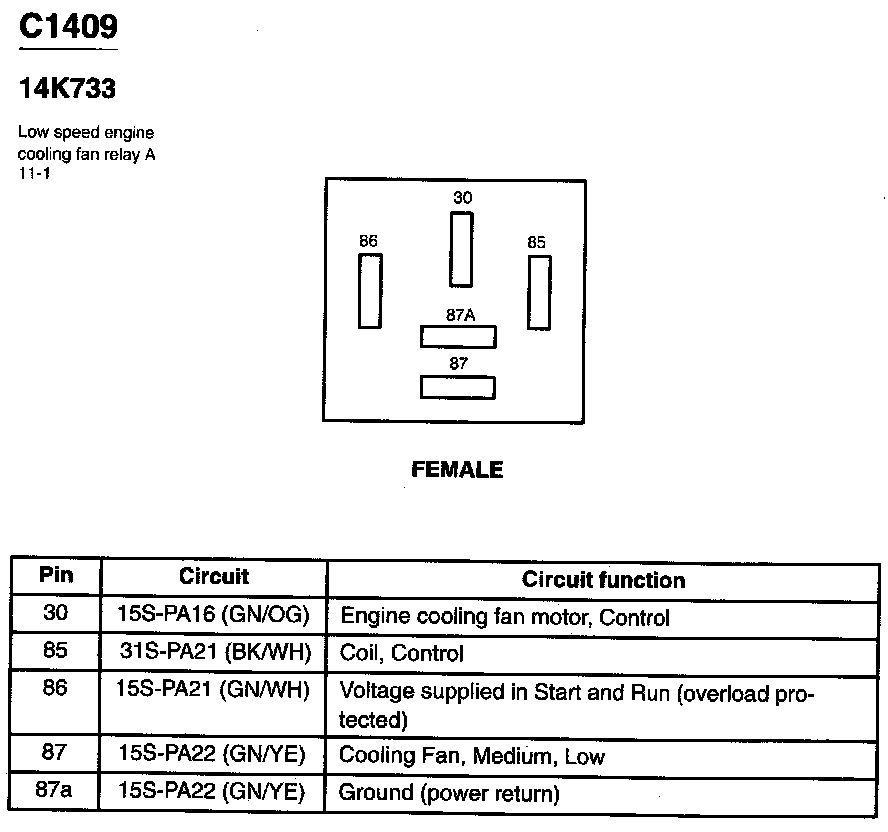

Low Speed Engine Cooling Fan Relay A
C1409:
