Brake Caliper Anchor Plate, Front

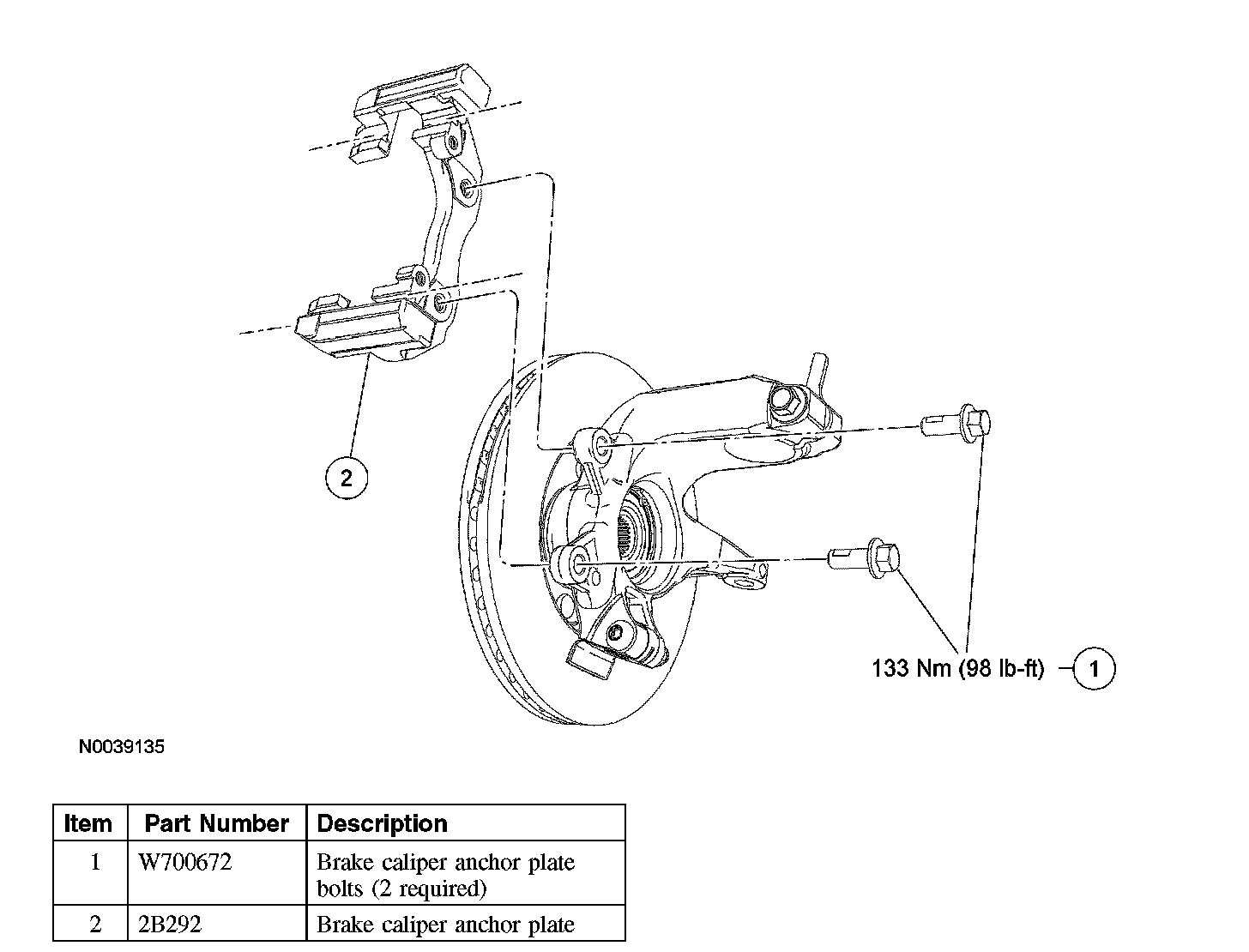

Brake Caliper Anchor Plate

Removal and Installation





1. Remove the brake pads.
2. Remove the 2 bolts and the brake caliper anchor plate.
^ To install, tighten to 133 Nm (98 ft. lbs.).
3. To install, reverse the removal procedure.
