Sunroof / Moonroof Windguard: Service and Repair

AIR DEFLECTOR

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Place the roof opening panel in the FULL open position.

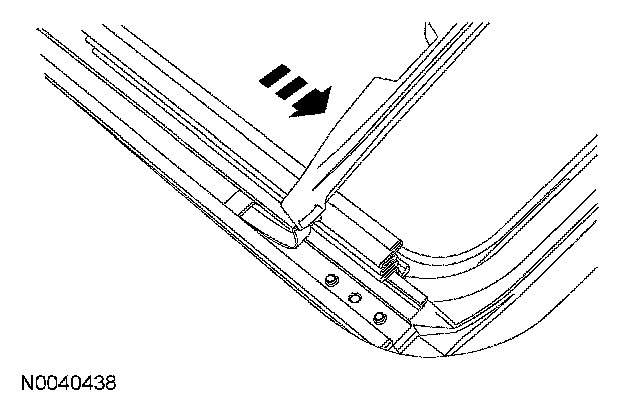

2. From the top of the vehicle, press the spring steel locating tab downward on each side with a flat-blade screwdriver while pushing the deflector toward the rear of the vehicle.

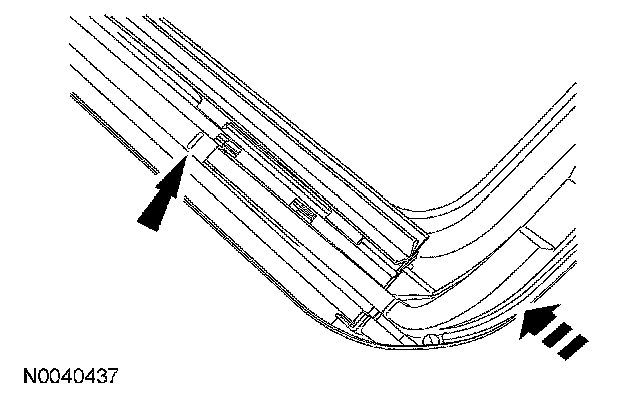

3. Tilt the air deflector upward and pull forward to remove.
4. To install, reverse the removal procedure.
- Make sure the locating tabs are firmly locked in place.
