Sunroof / Moonroof Motor: Service and Repair
ROOF OPENING PANEL MOTORPart 1:
Part 2:
Exploded View
Removal
1. CAUTION: To avoid damage, the overhead console trim panel must only be pulled downward far enough to release the retaining clips.

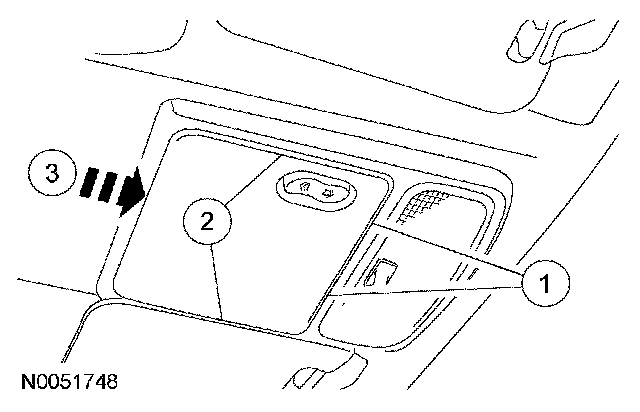

Remove the overhead console trim panel from the overhead console.
1 Using a suitable tool, release the 2 front retaining clips.
2 Pull the overhead console trim panel downward to release the 2 side retaining clips.
3 Push the overhead console trim panel forward to release the rear retaining clip.
2. Remove the overhead console trim panel.
- Disconnect the roof opening panel control switch electrical connector.
3. Disconnect the roof opening panel motor electrical connector.
4. Remove the 3 bolts and the roof opening panel motor.
Installation
1. CAUTION: This step must be carried out if installing a previously used roof opening panel motor.
NOTE: This step is not necessary when installing a new roof opening panel motor.
If installing a previously used roof opening panel motor, carry out the Erasing Roof Opening Panel Motor Initialization procedure. Erasing Roof Opening Panel Motor Initialization
2. Install the roof opening panel motor and the 3 bolts.
- Tighten to 3 Nm (27 lb-in).
3. If installing a new roof opening panel motor, connect the electrical connector.
4. Install the overhead console trim panel.
- If installing a new roof opening panel motor, connect the roof opening panel control switch electrical connector.
5. Initialize the roof opening panel motor.
