Rear Bumper Reinforcement: Service and Repair

BUMPER - REAR







Removal and Installation
1. Remove the rear bumper cover.

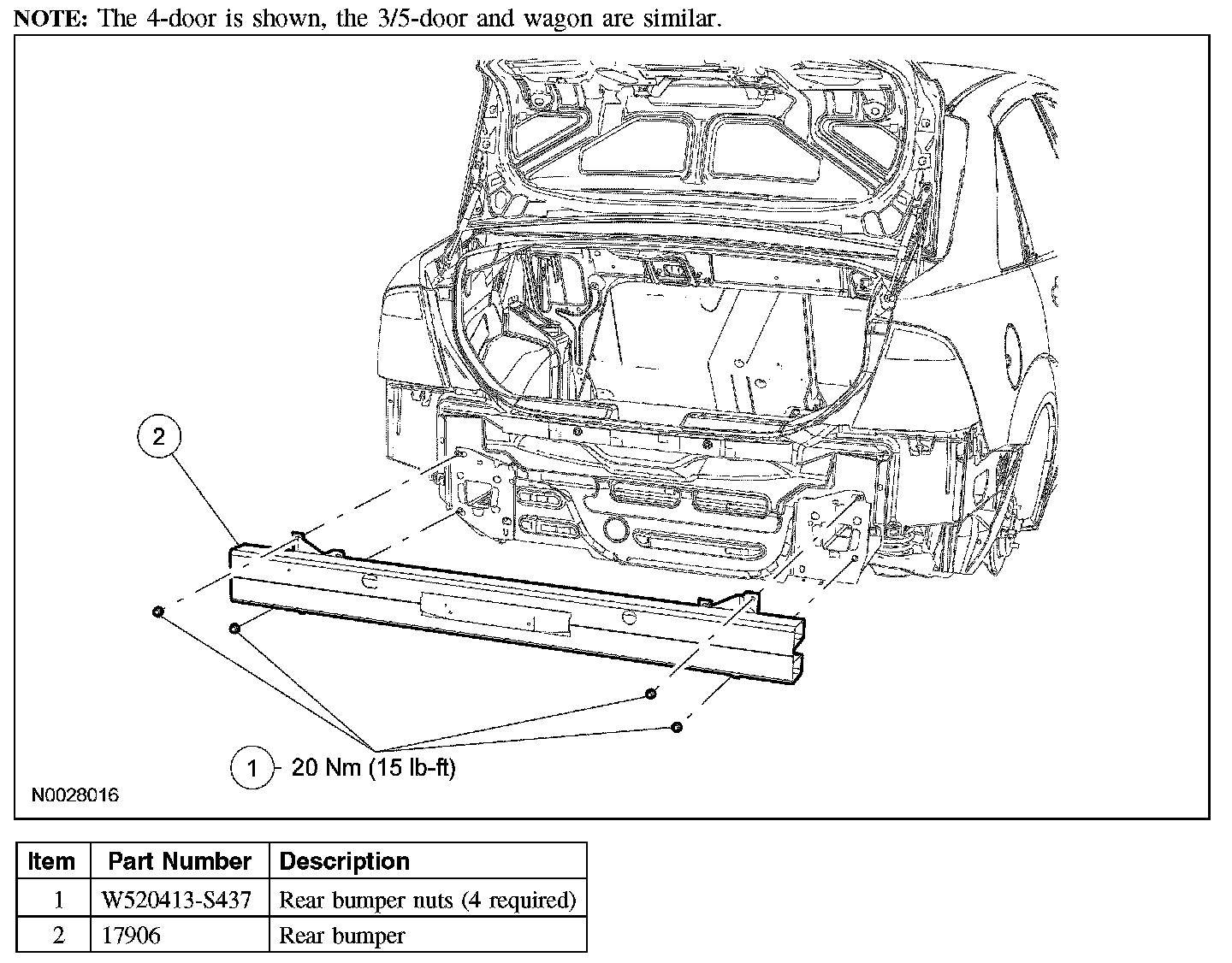

2. Remove the 4 rear bumper nuts and the rear bumper.
- Remove the bumper spacers (if equipped).
- To install, tighten to 20 Nm (15 lb-ft).

3. To install, reverse the removal procedure.
