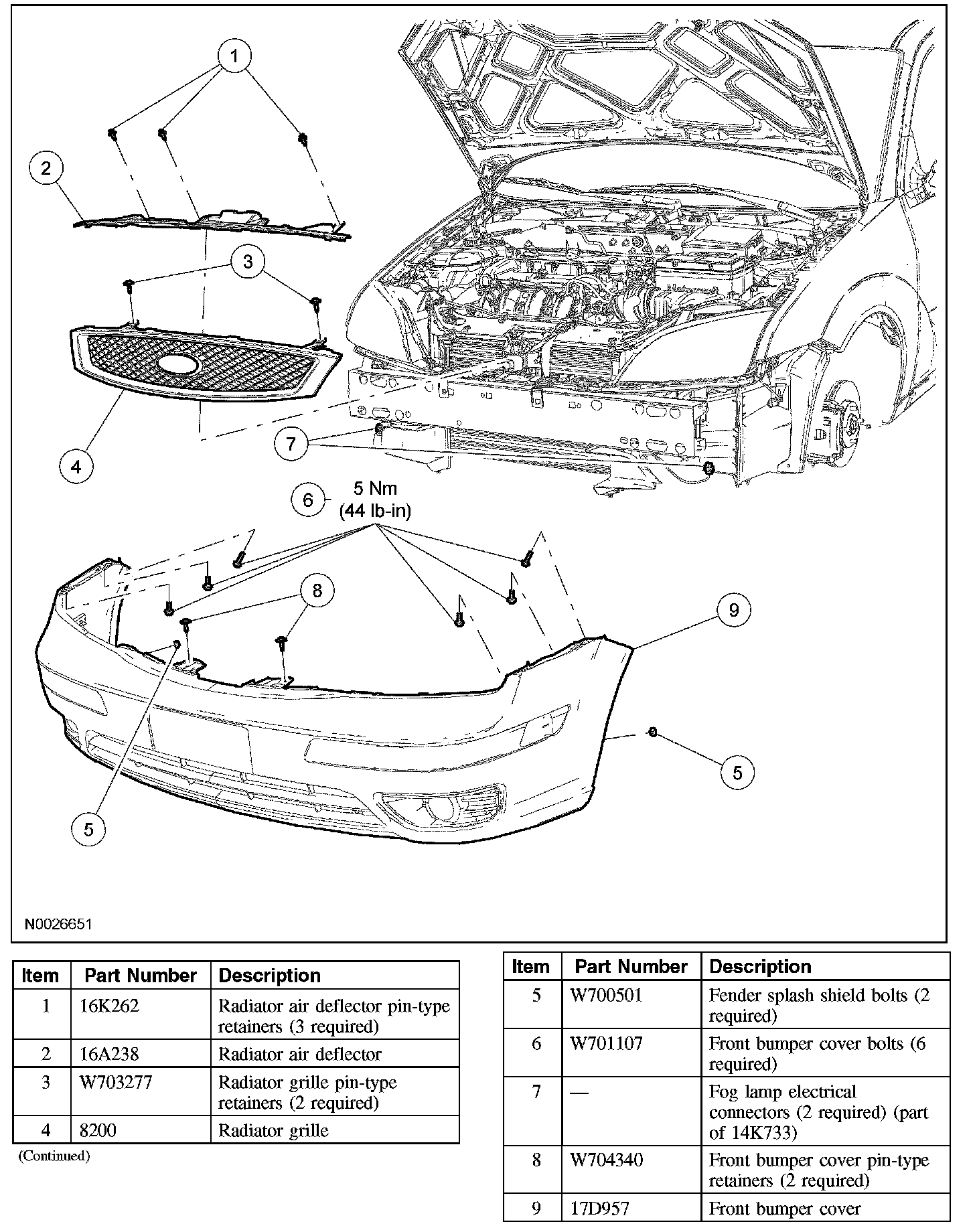

Front Bumper Cover / Fascia: Service and Repair

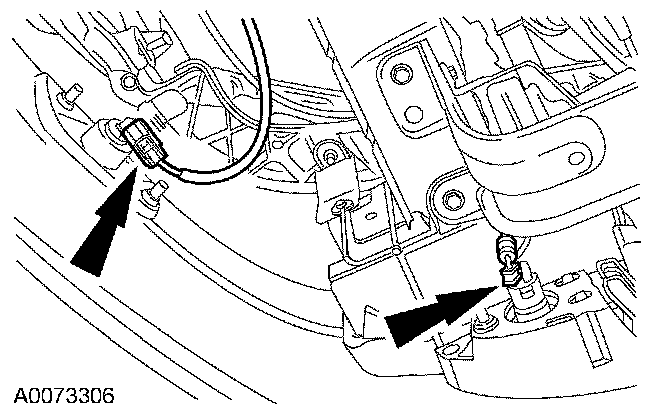

BUMPER COVER - FRONT







Removal and Installation
1. Remove the 3 pin-type retainers and the radiator air deflector.







2. If equipped, disconnect the turn signal lamp electrical connectors.

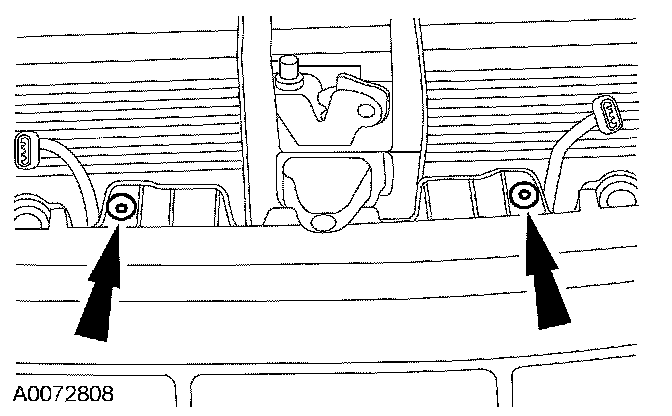

3. Remove the 2 radiator grille pin-type retainers and the radiator grille.
4. With the vehicle in NEUTRAL, position it on a hoist.
5. Remove the radiator lower air deflector.

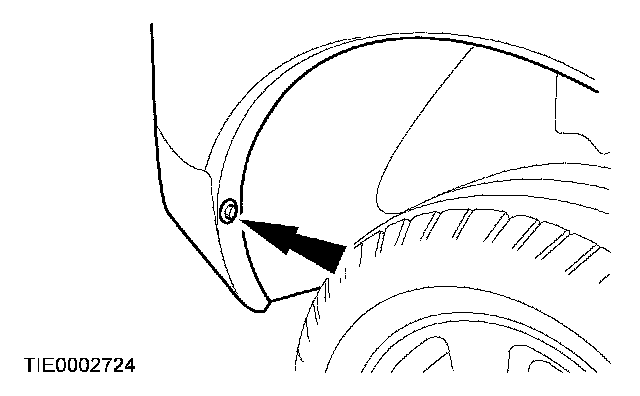

6. Remove the 2 fender splash shield bolts.

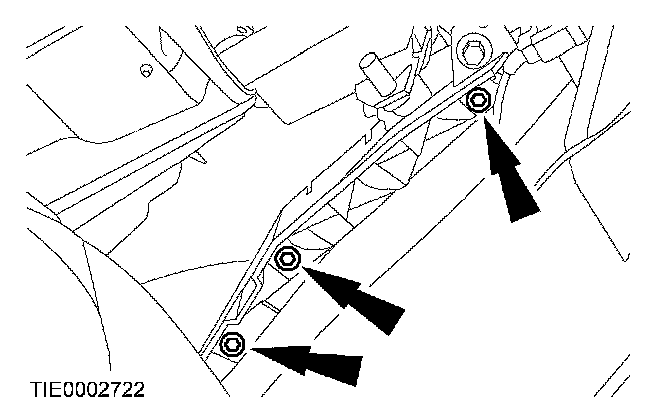

7. Remove the 6 front bumper cover bolts from the fender.
- To install, tighten to 5 Nm (44 lb-in).

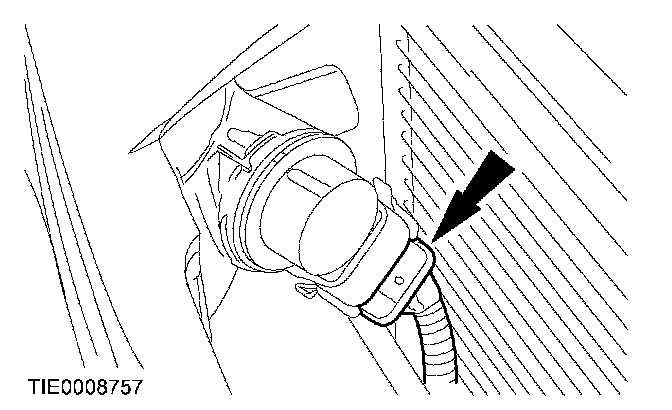

8. Disconnect the side turn signal lamp electrical connectors.
- If equipped, disconnect the fog lamp electrical connectors.







9. Remove the 2 pin-type retainers and the bumper cover from the radiator grille opening panel.







10. Remove the front bumper cover.

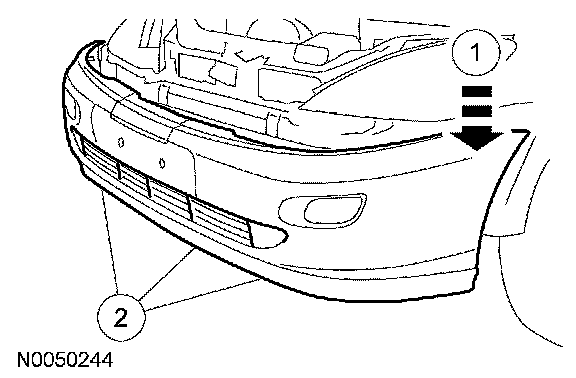

1 Lower the front bumper cover.
2 Disconnect the front bumper cover from the radiator splash shield.

11. To install, reverse the removal procedure.
