Subwoofer Speaker

SUBWOOFER SPEAKER







Removal and Installation

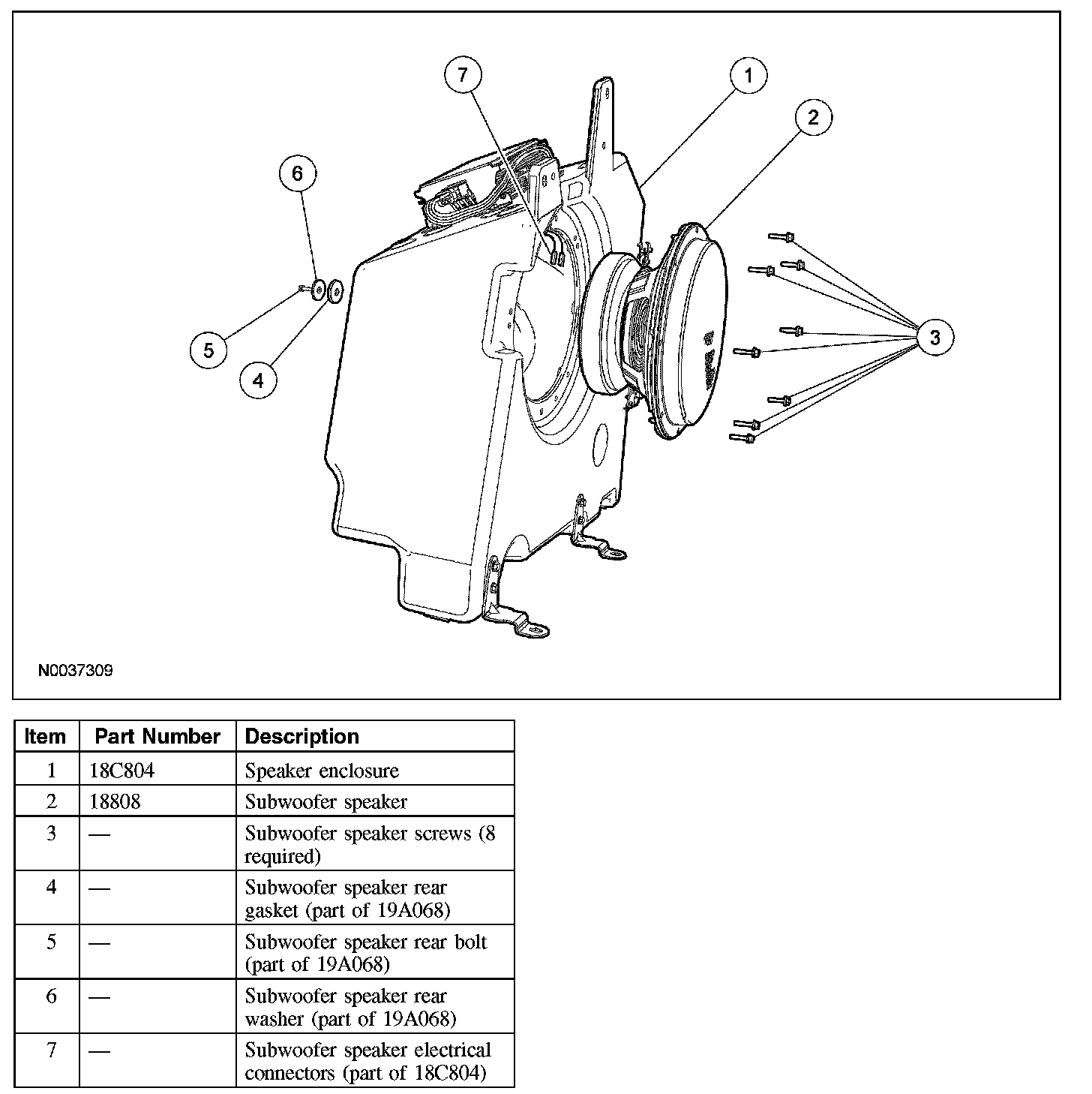

1. Remove the speaker enclosure.
2. Remove the subwoofer speaker rear bolt.
3. Remove the 8 screws and the subwoofer speaker from the speaker enclosure.
- Disconnect the electrical connectors.

4. To install, reverse the removal procedure.
