Speaker Enclosure

SPEAKER ENCLOSURE







Removal and Installation

4-door
1. Remove the LH luggage compartment trim.

All except 4-door
2. Remove the rear quarter trim panel.

All

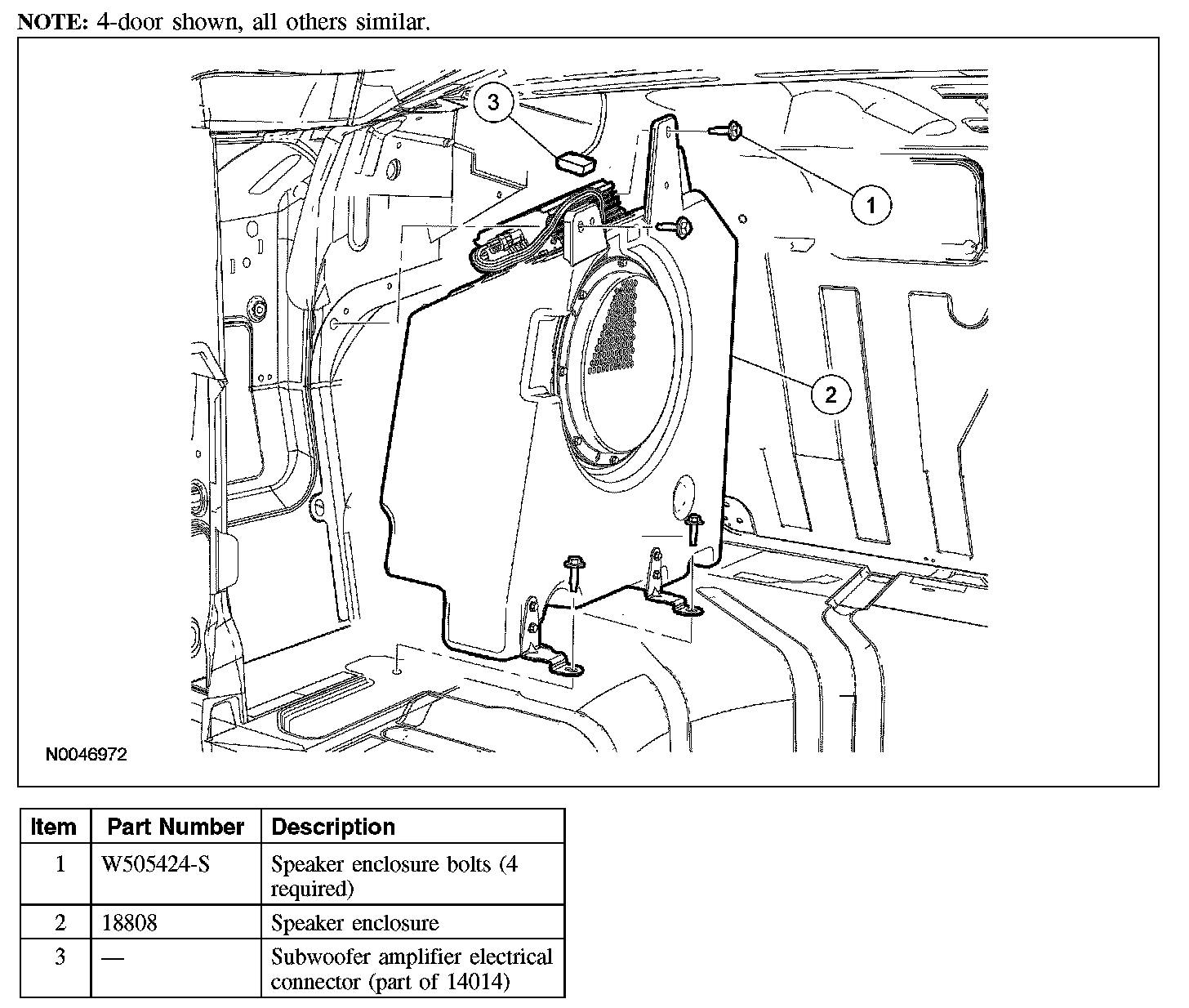

3. Remove the 4 bolts and the speaker enclosure.
- Disconnect the subwoofer amplifier electrical connector.

4. To install, reverse the removal procedure.
