Quarter Panel Speaker

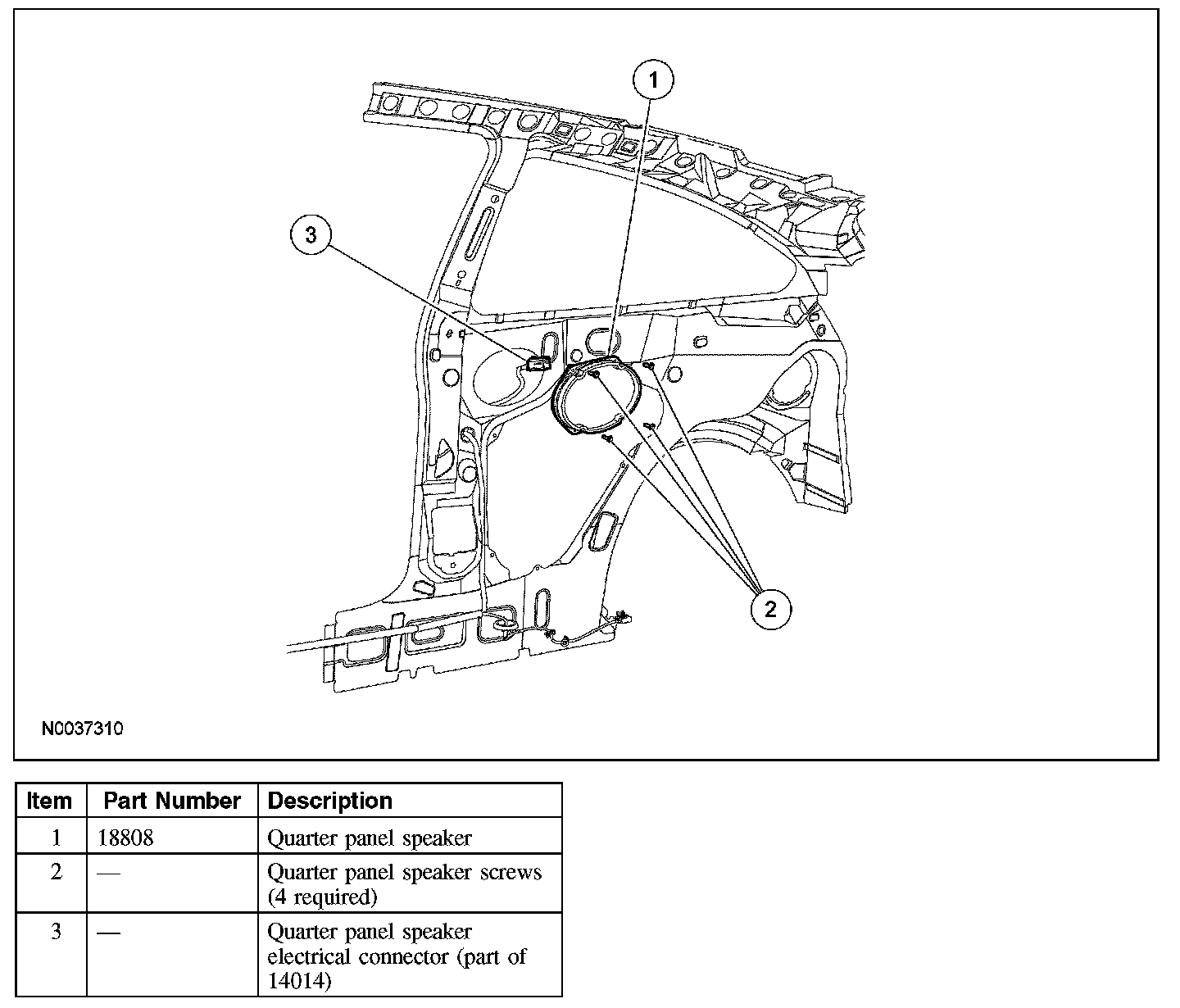

QUARTER PANEL SPEAKER







Removal and Installation
1. Remove the rear quarter trim panel.
2. Remove the 4 screws and the quarter panel speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
