Home >> Ford >> 2007 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Diagrams

Ignition Relay: Diagrams

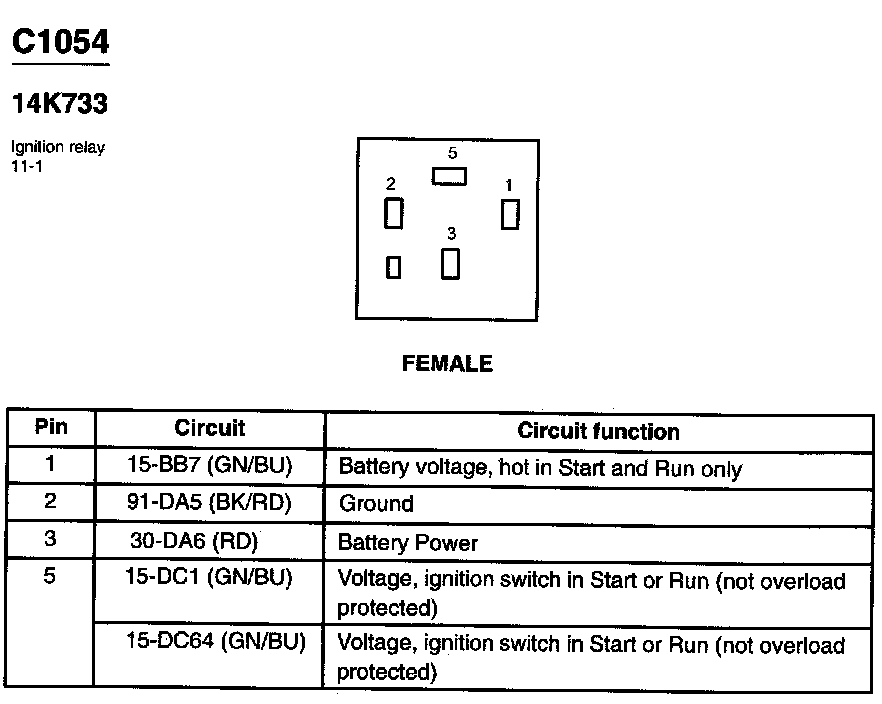

C1054:
