4-Door/Wagon

EVAPORATIVE EMISSION CANISTER - 4-DOOR/WAGON

Part 1:

Part 2:

Exploded View

Removal and Installation

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or fuel liquid is present in the area. Failure to follow these instructions may result in personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.







2. CAUTION: The stabilizer bar bushings must be correctly located on the stabilizer bar, with no lubricant.

NOTE:
- This step must be carried out with the vehicle at or near the curb height position. Load the suspension to achieve this.
- If this step is carried out on a twin post hoist, support the rear lower control arms on both sides.

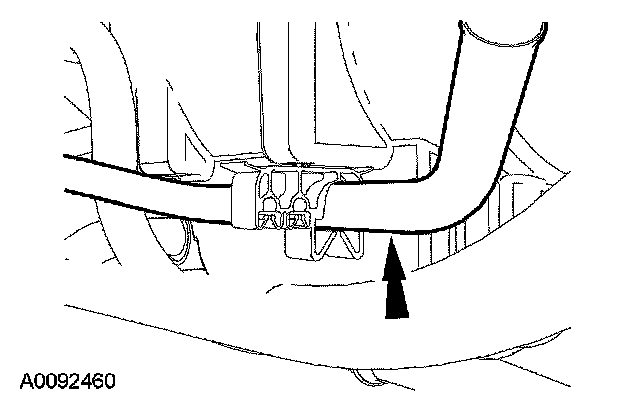

Remove the (4) rear stabilizer bar bracket bolts and position the stabilizer bar downward allowing adequate clearance for the removal of the evaporative emission (EVAP) canister.
- To install, tighten to 55 Nm (41 lb-ft).

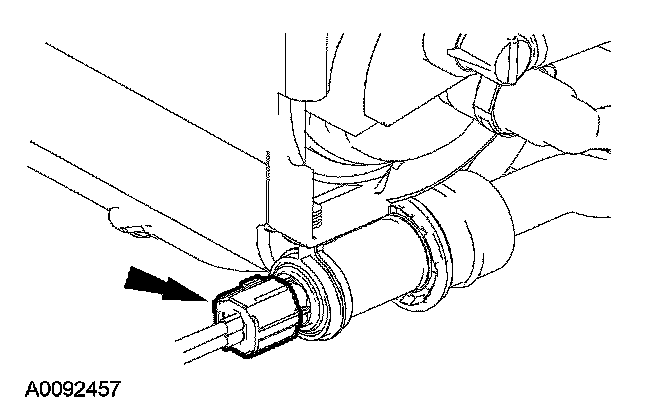

3. Disconnect the evaporative emissions (EVAP) vent solenoid electrical connector.

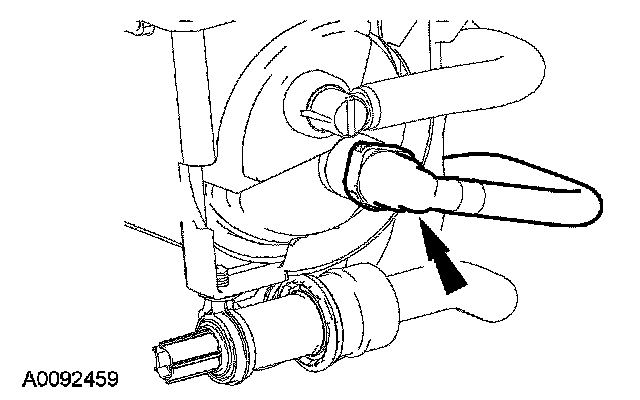

4. Disconnect the EVAP tube.







5. Detach the vapor tube retainer from the EVAP canister.

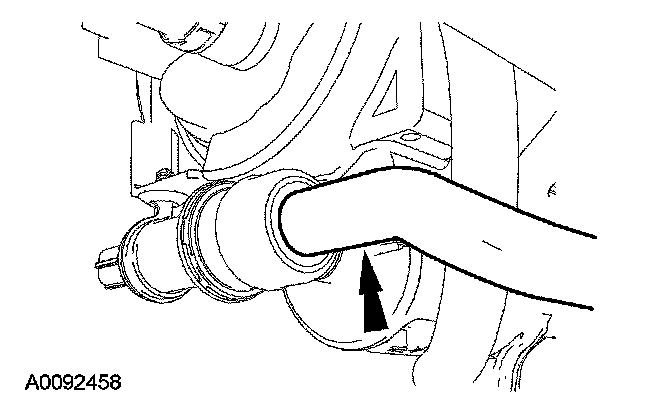

6. Disconnect the vapor tube-to-EVAP canister quick connect coupling.

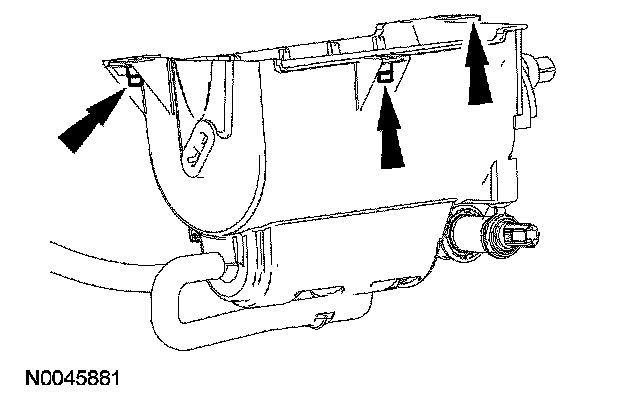

7. Remove the (3) nuts and the EVAP canister.
- To install, tighten to 5 Nm (44 lb-in).

8. To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
