Ford
>>
2007
>>
Focus L4-2.0L VIN N
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Connector Views
>>

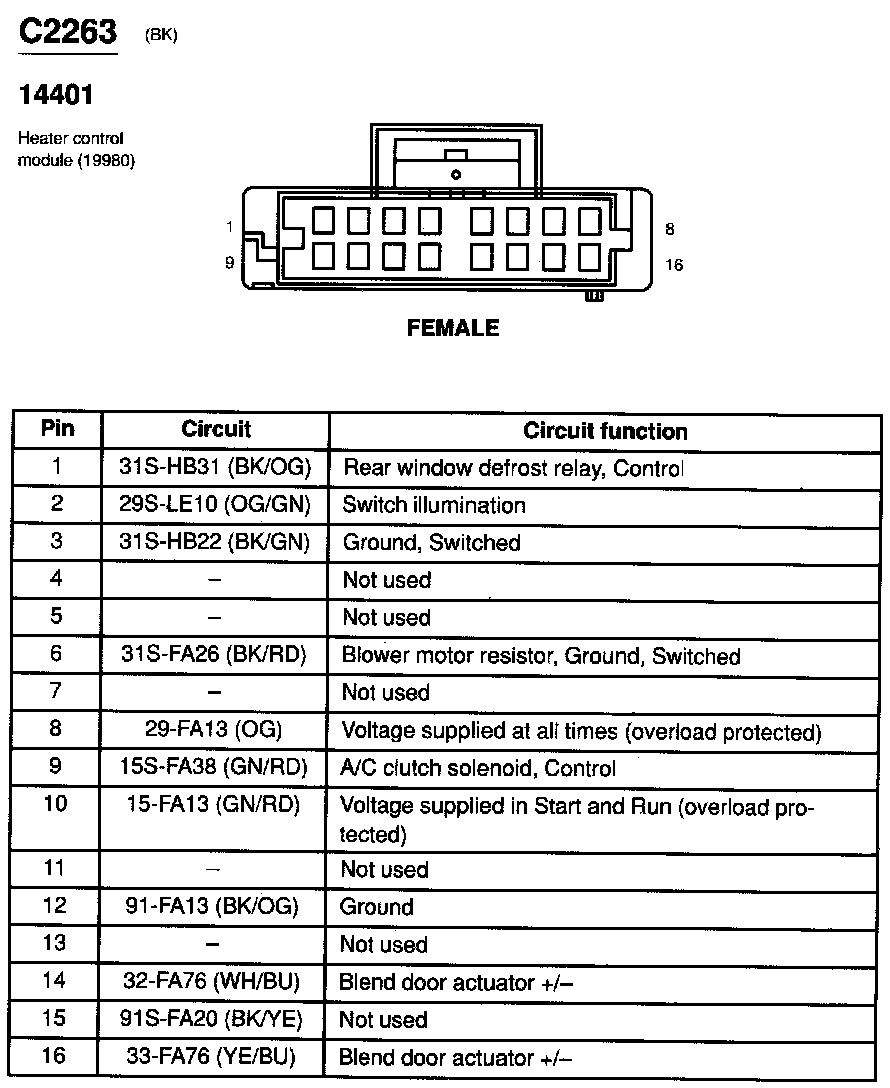

Heater Control Module
Heater Control Module
C2263:
