Amplifier: Service and Repair
SUBWOOFER AMPLIFIER

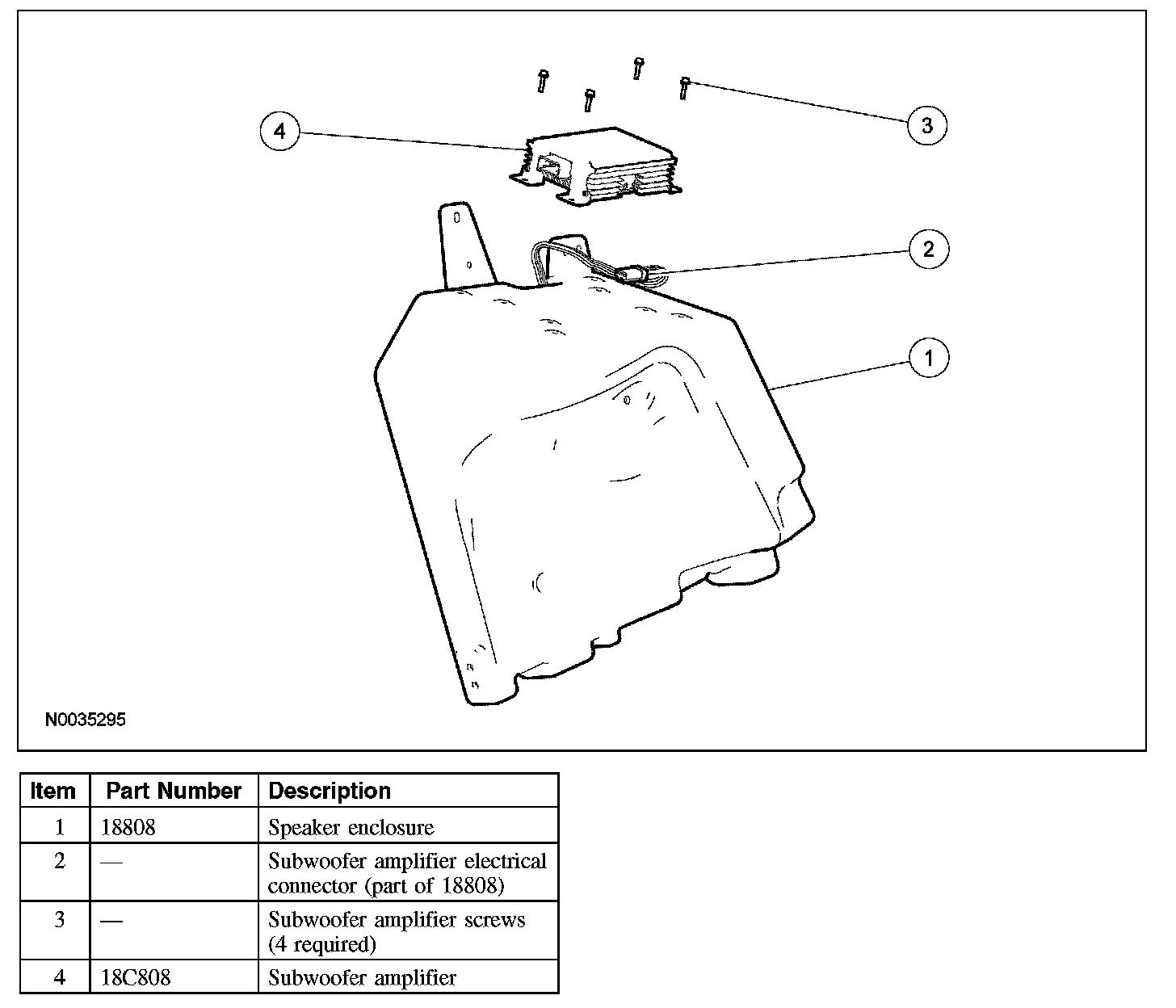

Removal and Installation
1. Remove the speaker enclosure.
2. Remove the 4 screws and the subwoofer amplifier.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the speaker enclosure.
2. Remove the 4 screws and the subwoofer amplifier.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
