Compass: Service and Repair

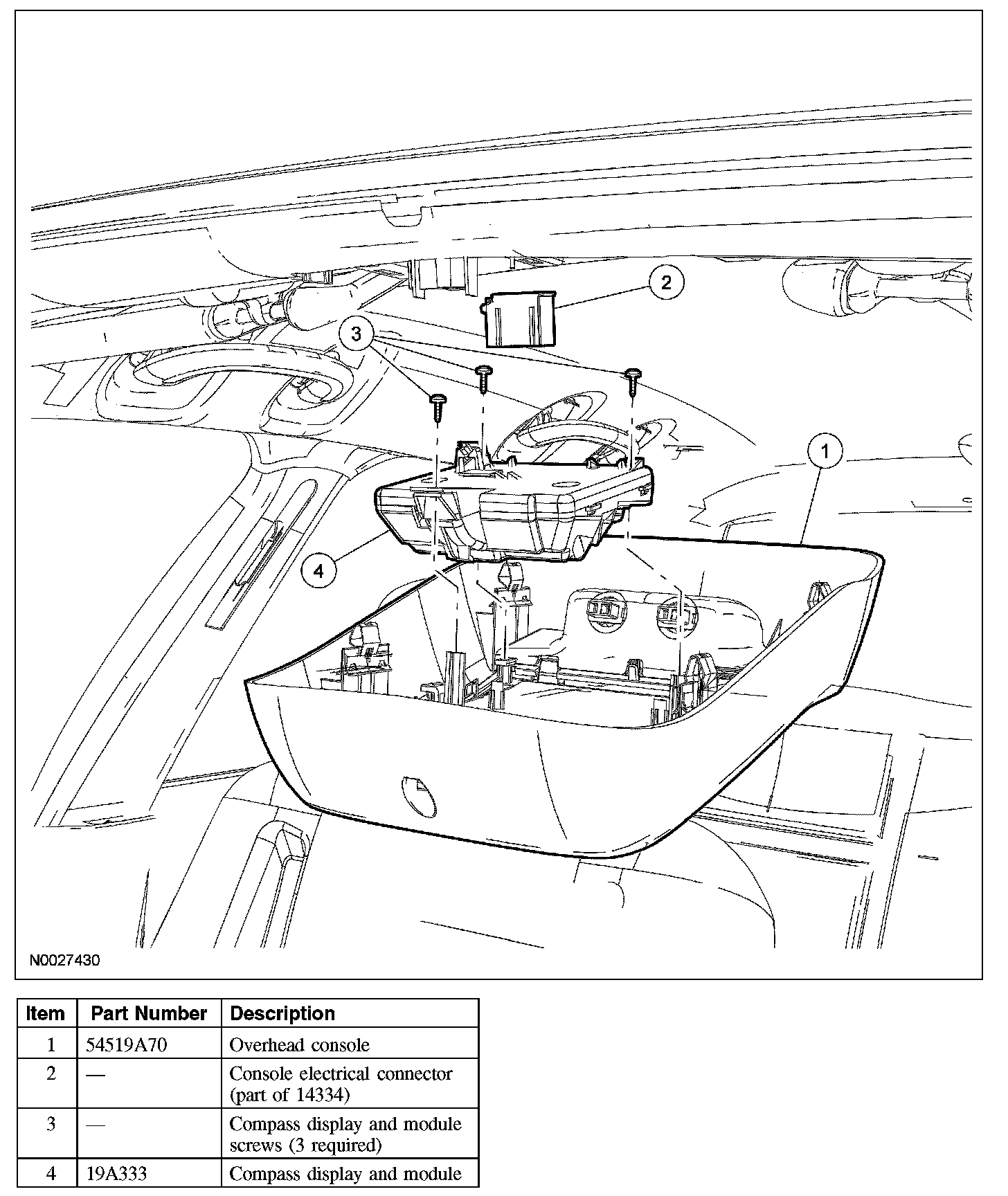

COMPASS DISPLAY AND MODULE







Removal and Installation
1. Remove the overhead console.
2. Remove the 3 screws and the compass display and module.
3. To install, reverse the removal procedure.
