Vacuum Reservoir HVAC: Service and Repair

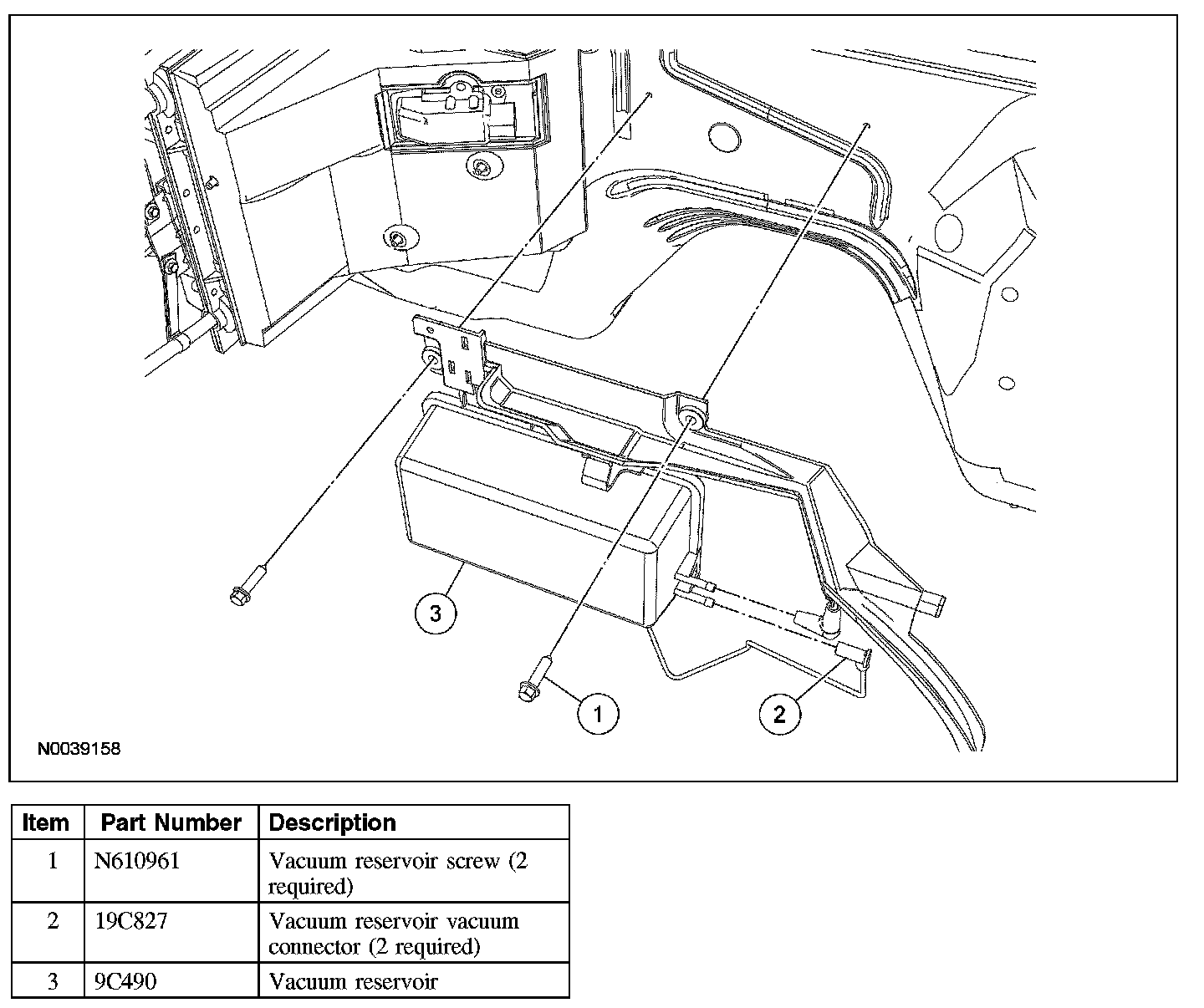

VACUUM RESERVOIR







Removal and Installation
1. Remove the wiper mounting arm and pivot shaft.
2. Disconnect the 2 vacuum reservoir vacuum connectors.
3. Remove the 2 vacuum reservoir retaining screws.
4. Remove the vacuum reservoir.
5. To install, reverse the removal procedure.
