Footwell Duct - Rear

FOOTWELL DUCT - REAR







Removal and Installation
1. Remove the front seats.
2. Position the carpet away from the rear footwell duct.

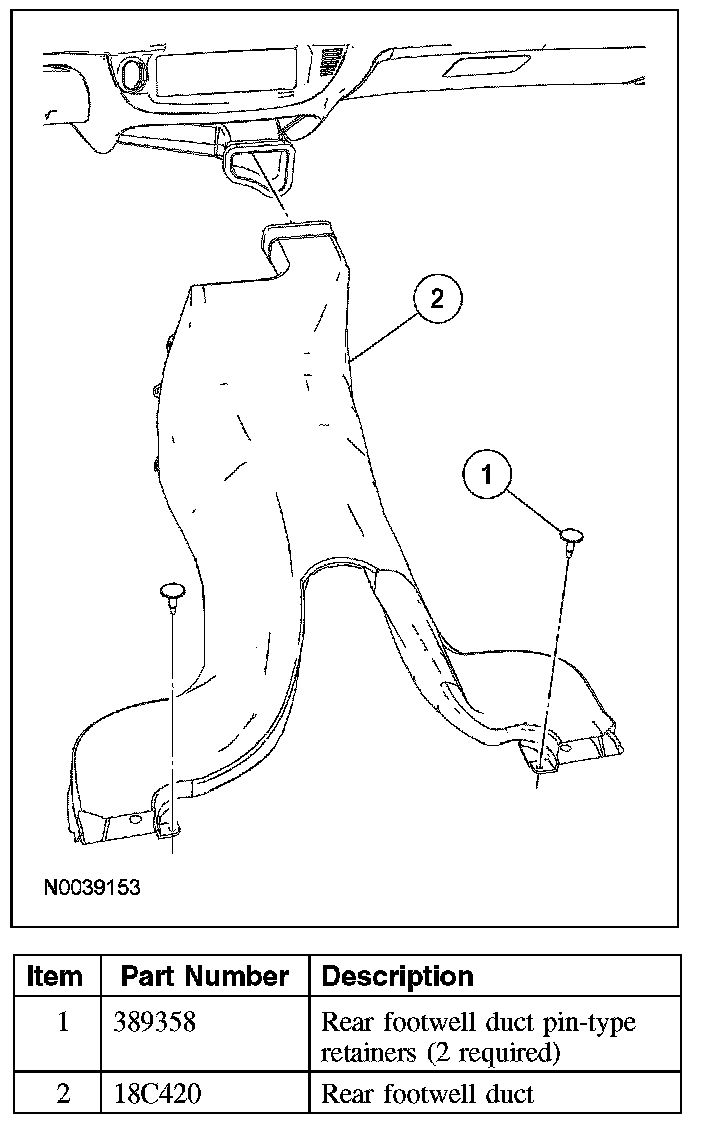

3. Remove the 2 rear footwell duct pin-type retainers.
4. To install, reverse the removal procedure.
