Attachment III - Technical Information

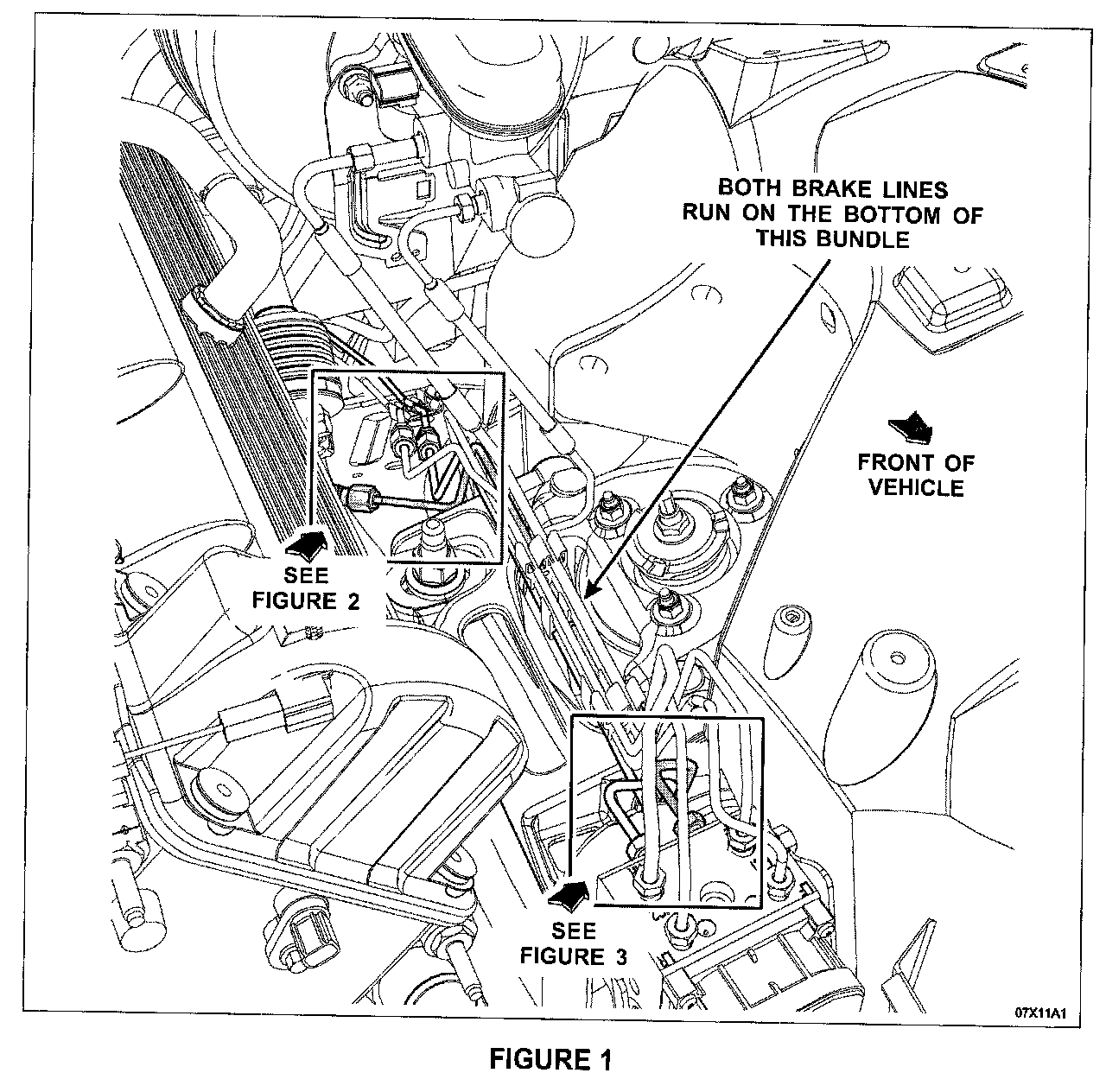

OVERVIEWThis program involves inspecting and, if necessary, repositioning the right side brake lines at the hydraulic control unit (HCU) and bleeding the brake system. Figure 1 shows a routing overview of the right side brake lines.
INSPECTION

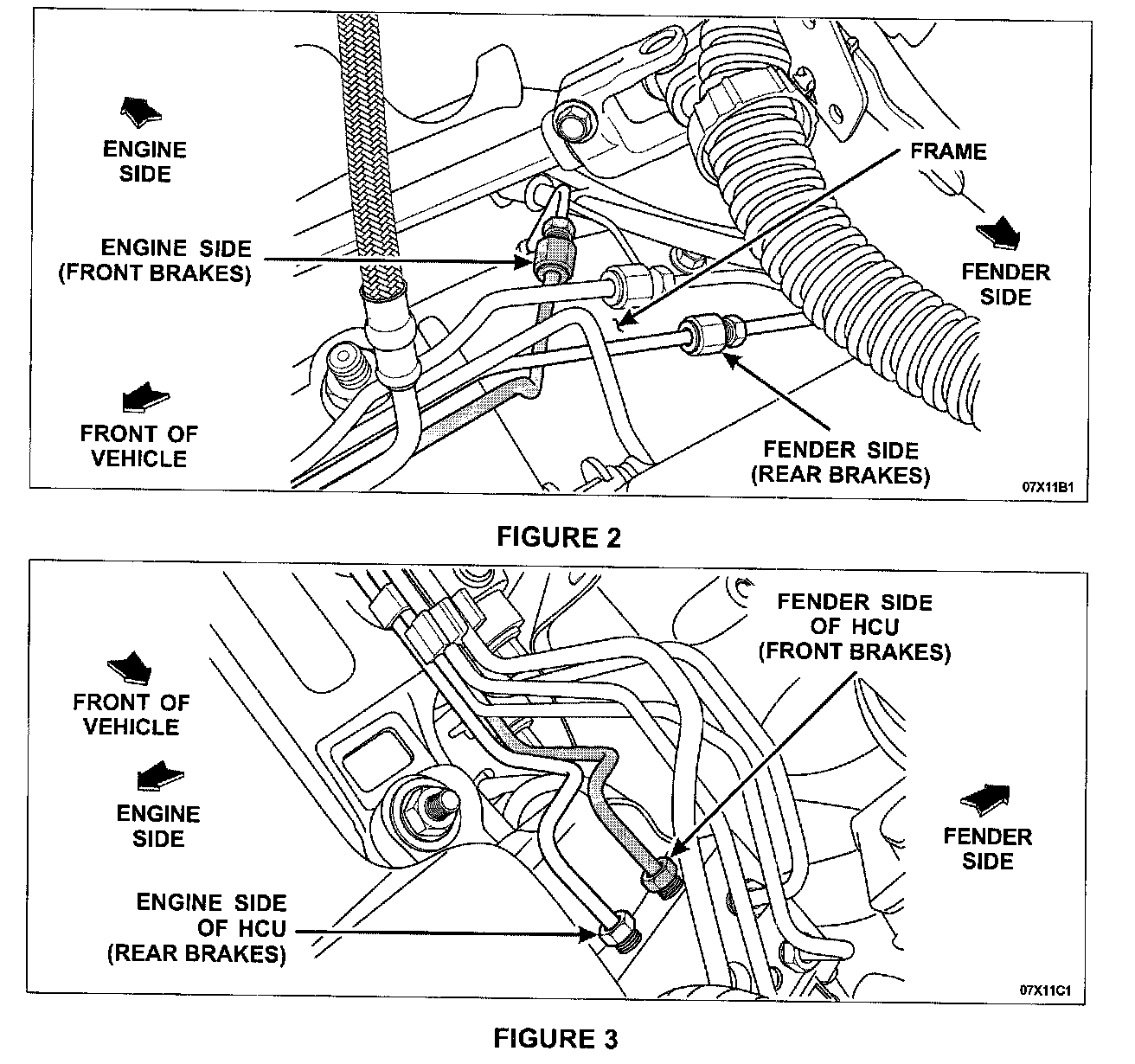

Trace the brake line from the Engine Side connection shown in Figure 2 back to the HCU port shown in Figure 3.
^ If it traces back to the Fender Side connection of the HCU, the connections are correct. Release the vehicle, no service is necessary.
^ If it traces back to the Engine Side connection of the HCU, the connections are NOT correct. Perform the Service Procedure in this Attachment III.
SERVICE PROCEDURE
WARNING:
USE OF ANY OTHER THAN APPROVED DOT 3 BRAKE FLUID WILL CAUSE PERMANENT DAMAGE TO BRAKE COMPONENTS AND WILL RENDER THE BRAKES INOPERATIVE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
WARNING:
CAREFULLY READ CAUTIONARY INFORMATION ON PRODUCT LABEL. FOR EMERGENCY MEDICAL INFORMATION SEEK MEDICAL ADVICE. IN THE USA OR CANADA CALL FORD/MOTORCRAFT PRODUCTS. FOR ADDITIONAL INFORMATION, CONSULT THE PRODUCT MATERIAL SAFETY DATA SHEET (MSDS) IF AVAILABLE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
CAUTION:
Brake fluid is harmful to painted or plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
1. Disconnect the mass airflow (MAF) sensor electrical connector, loosen the air cleaner outlet pipe clamps and remove the air cleaner cover and air cleaner outlet pipe.

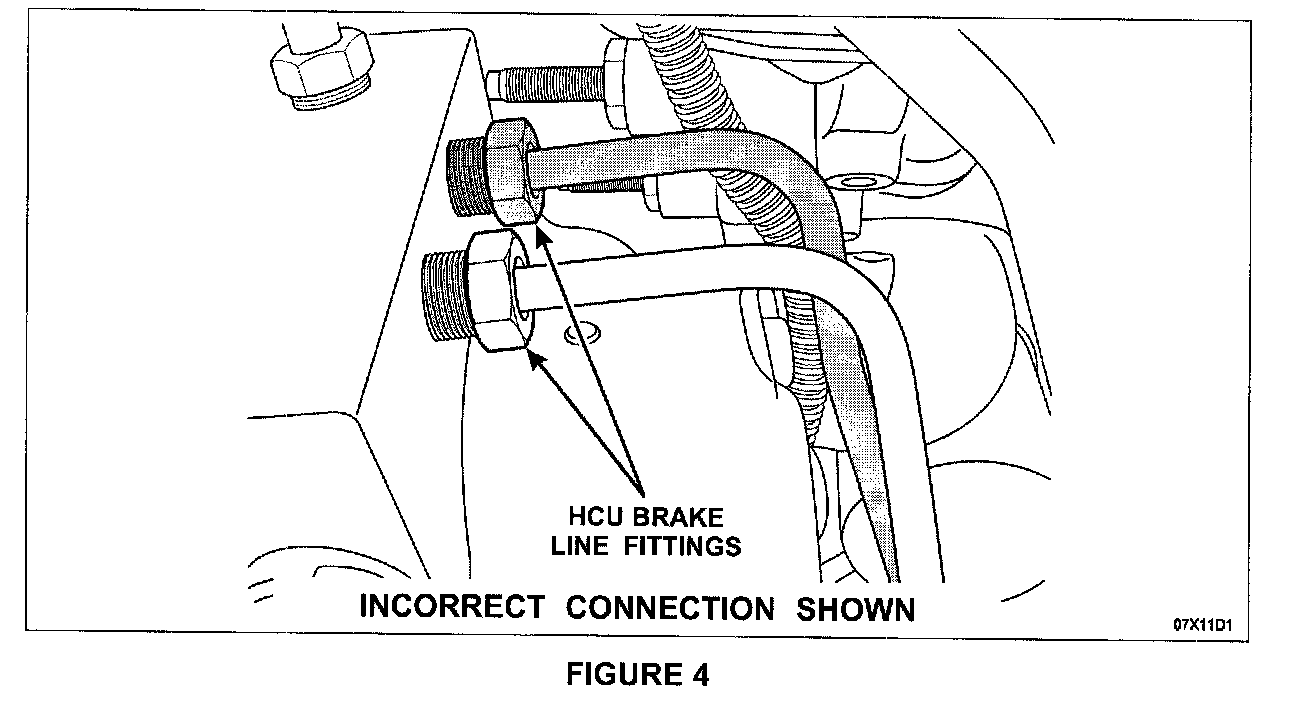

2. Disconnect the brake lines at the HCU. See Figure 4.

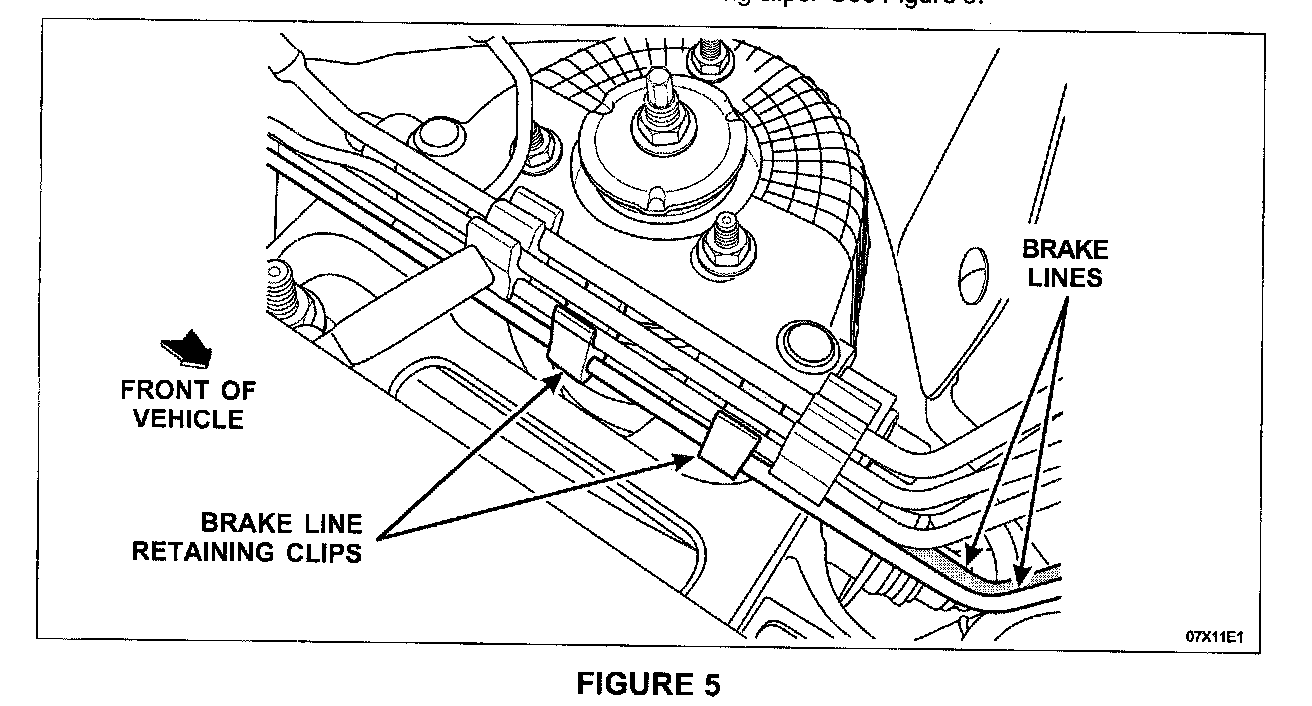

3. Disengage the brake lines from the brake line retaining clips. See Figure 5

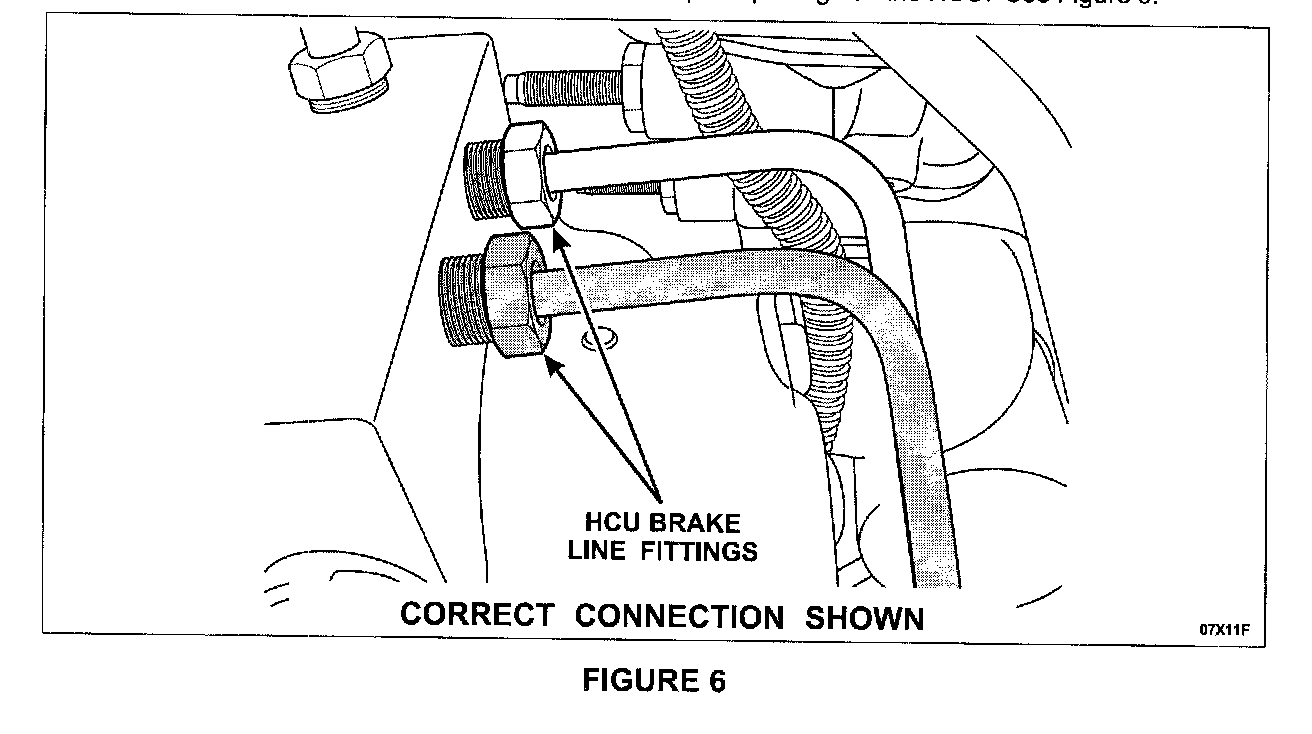

4. Position the brake lines and install to the correct port openings on the HCU. See Figure 6.

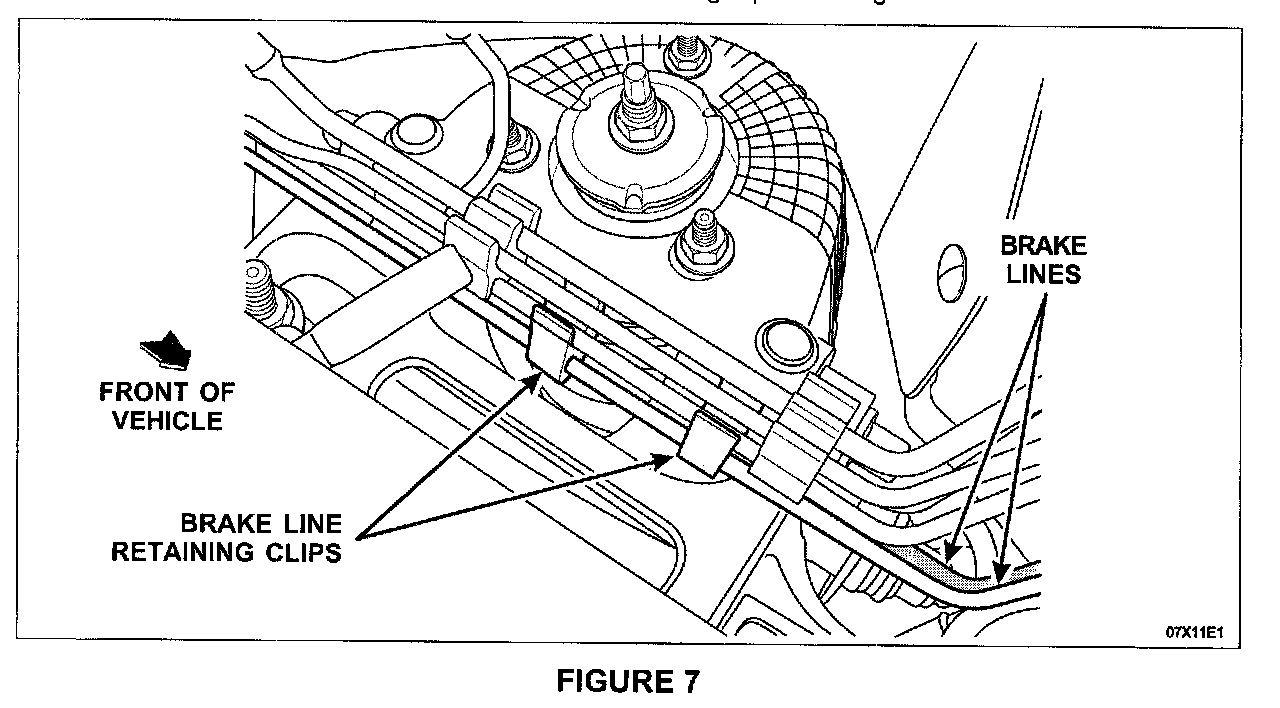

5. Re-engage the brake lines into the brake line retaining clips. See Figure 7.
6. Tighten the brake lines at the HCU to 15 Nm (11 lb4t).
7. Install the air cleaner cover, air cleaner outlet pipe, tighten the air cleaner outlet pipe clamps to 4 Nm (35 lb-in) and connect the MAF sensor electrical connector.
8. Bleed the brake system. For additional information, refer to Section 206-00 of the workshop manual.
