Home
>>
Ford
>>
2005
>>
Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

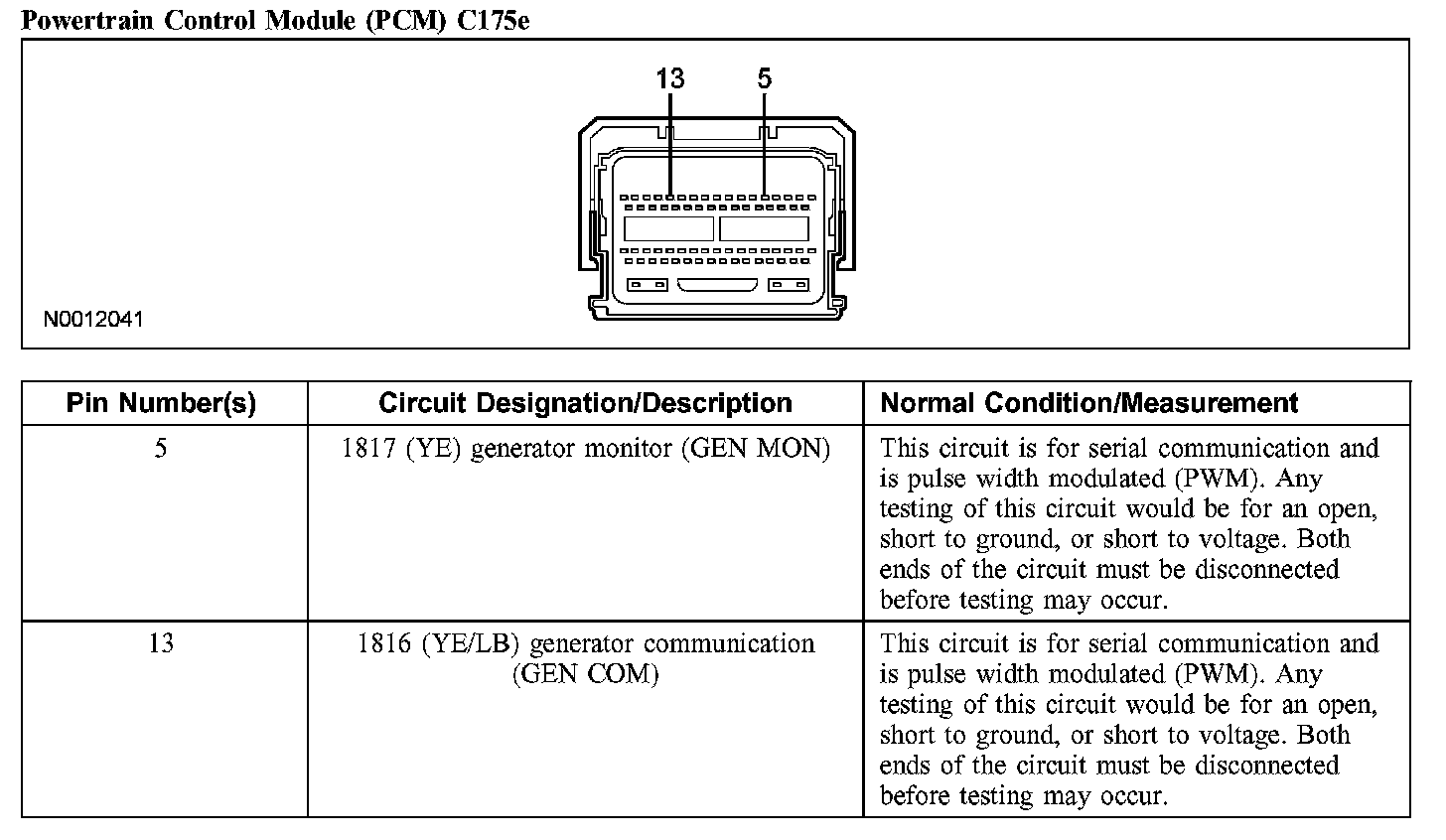

Powertrain Control Module (PCM) C175e
Powertrain Control Module (PCM) C175e
Powertrain Control Module (PCM) C175e:
