Ford
>>
2005
>>
Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>

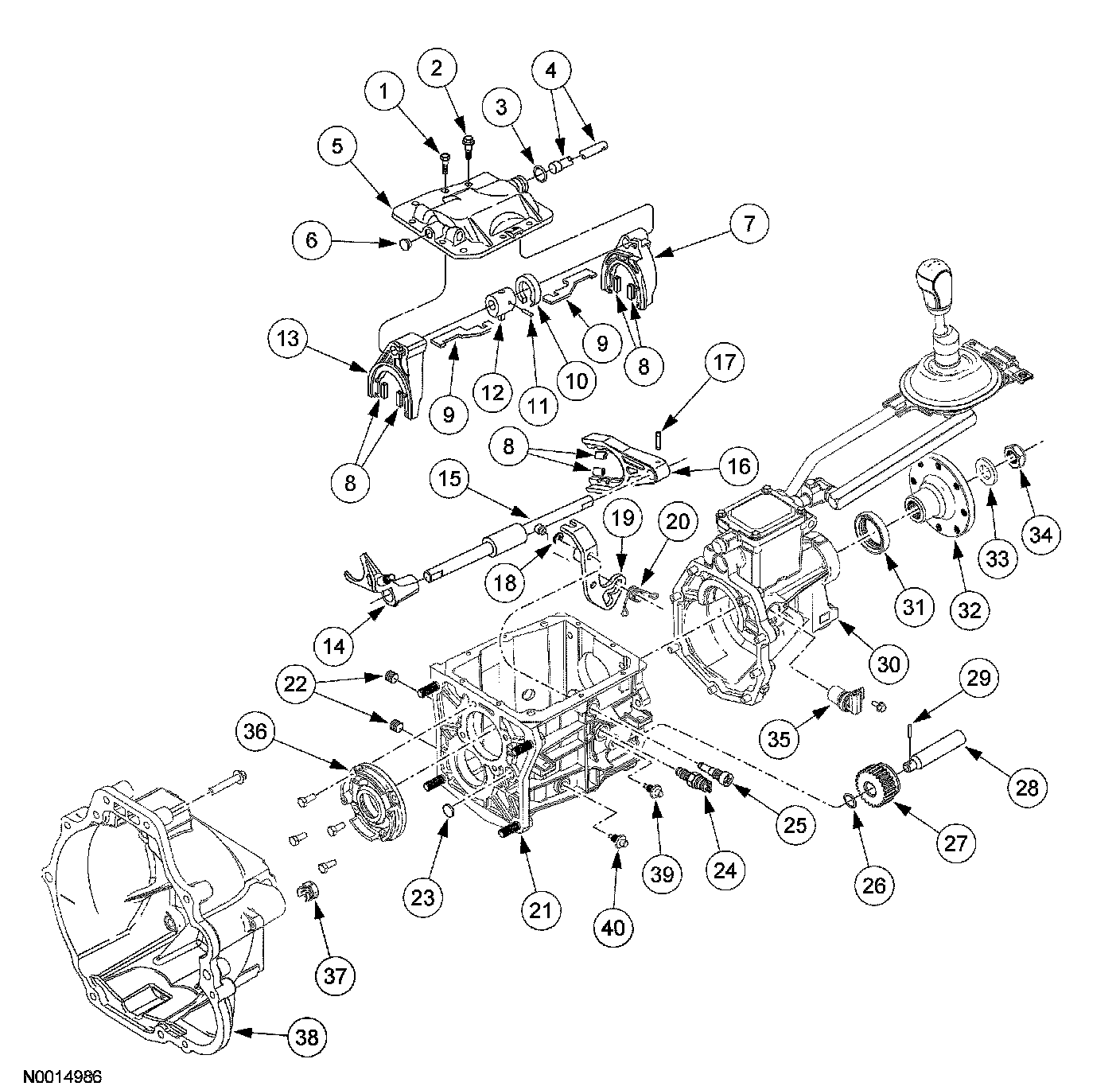

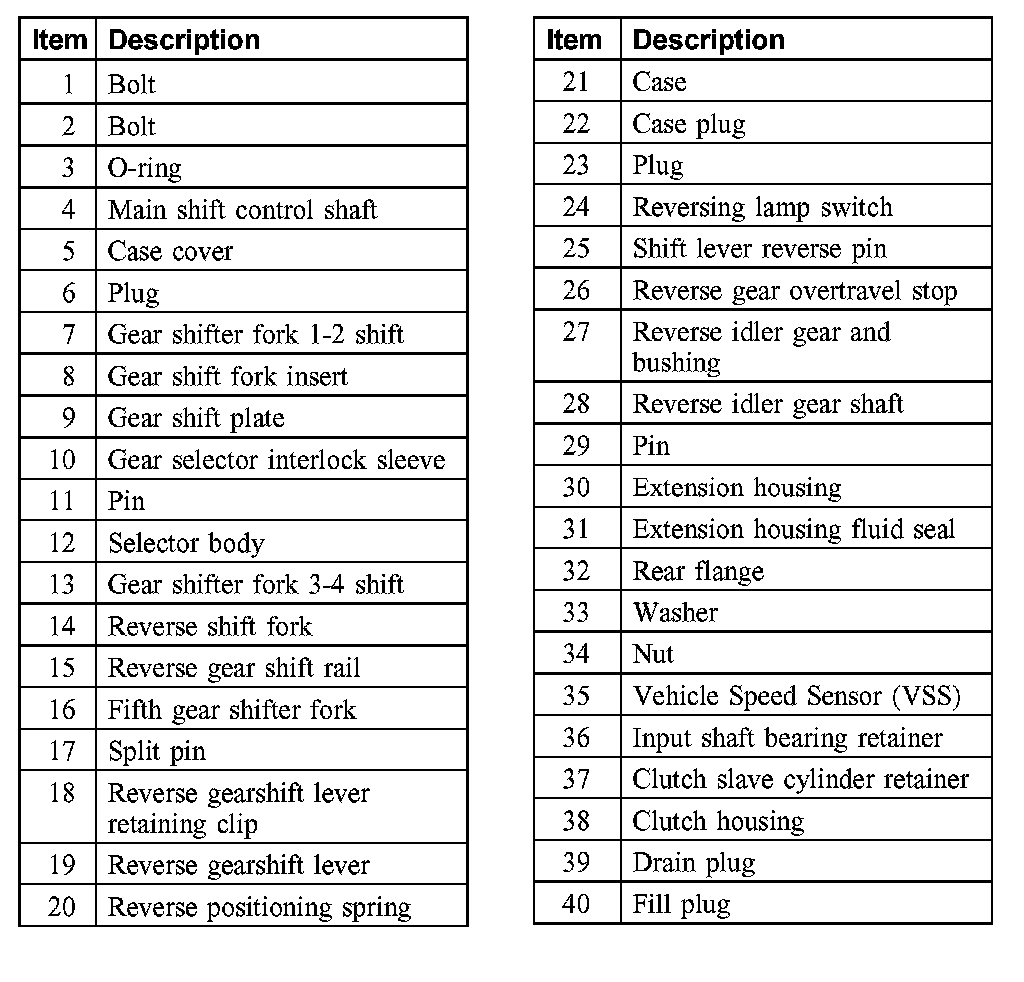

Shift Components and Case-Disassembled View
Shift Components and Case-Disassembled View
