Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction Control Module
>>

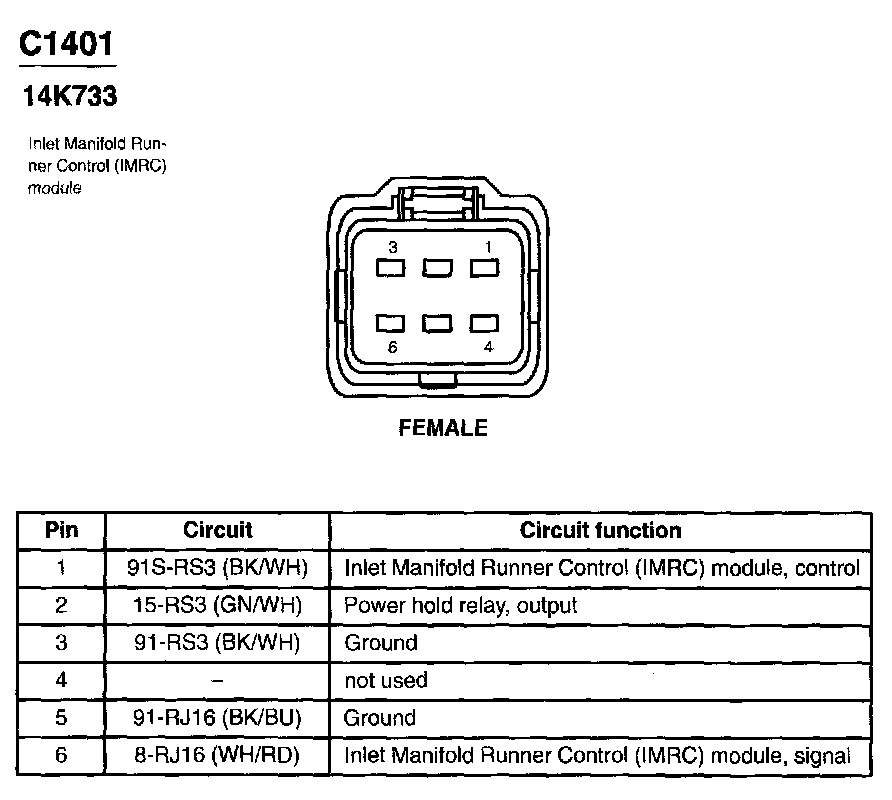

Inlet Manifold Runner Control Module

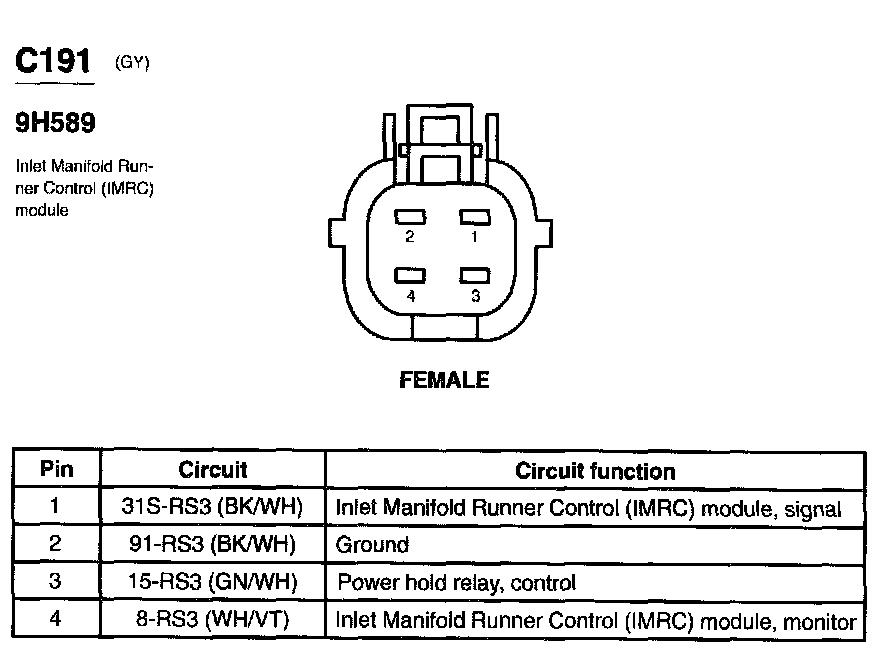

Inlet Manifold Runner Control Module
