Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

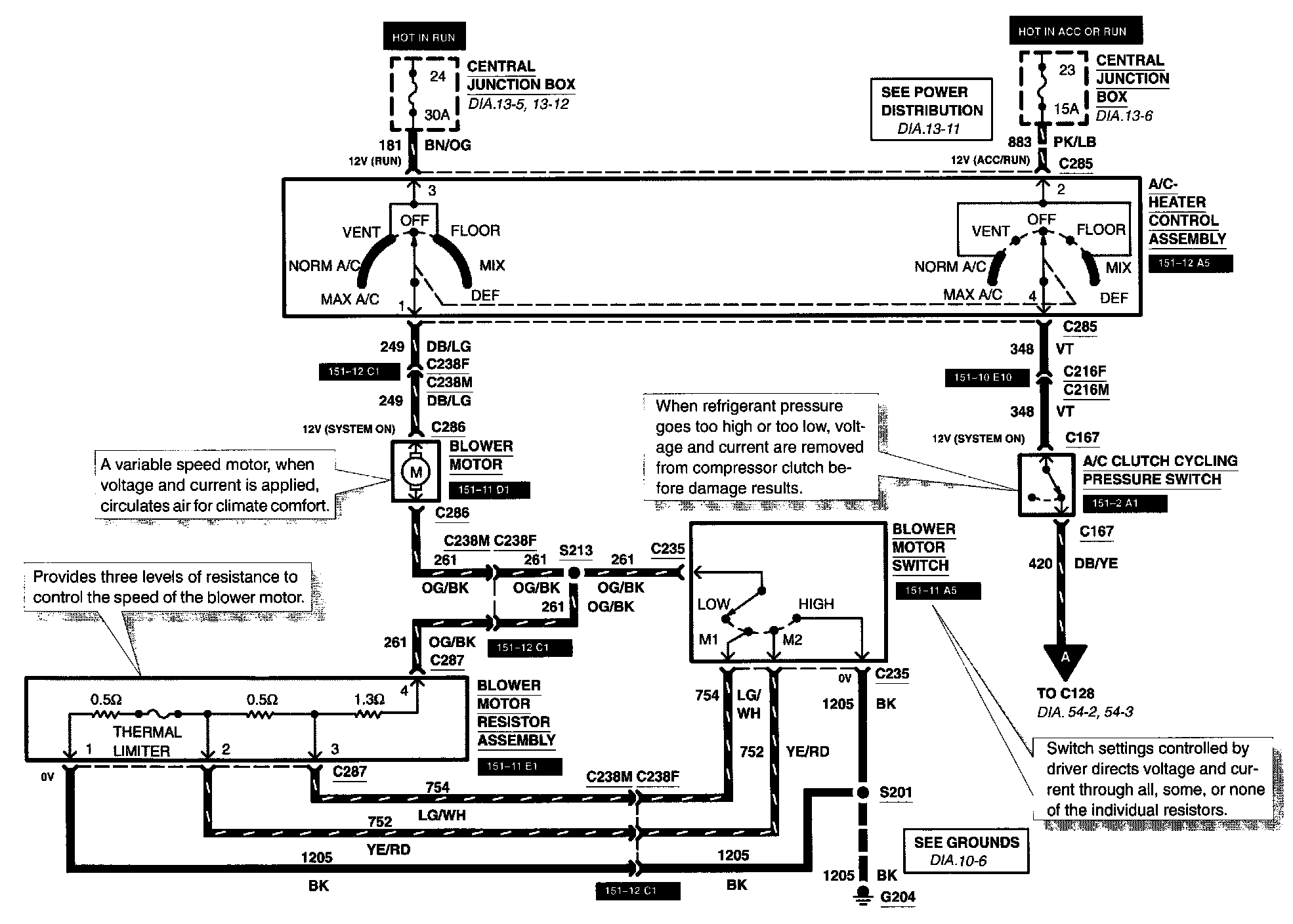

Diagram 54-1:

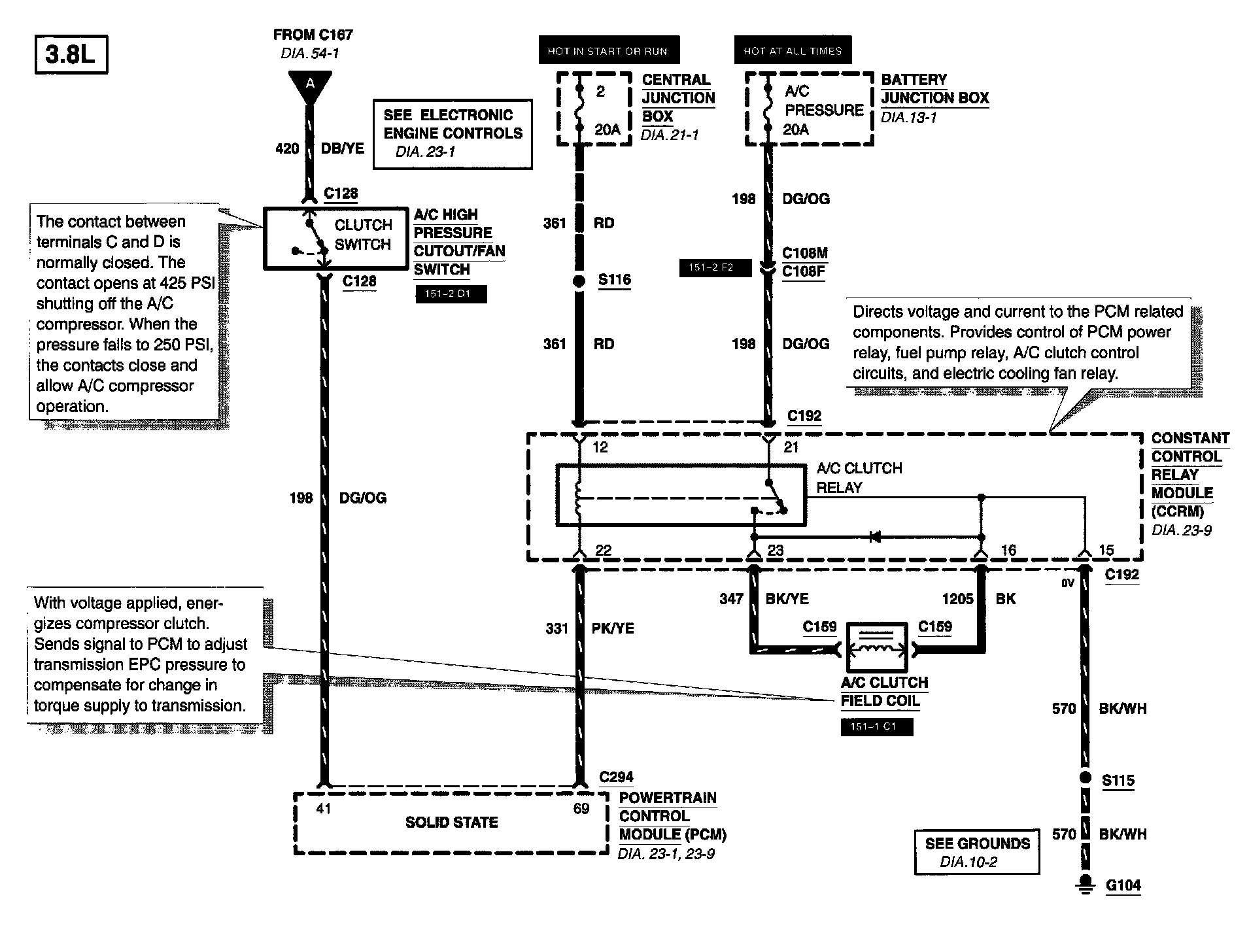

Diagram 54-2:
