Automatic Transmission/Transaxle
>>
Differential, Automatic Transaxle
>>
AX4S
AX4S

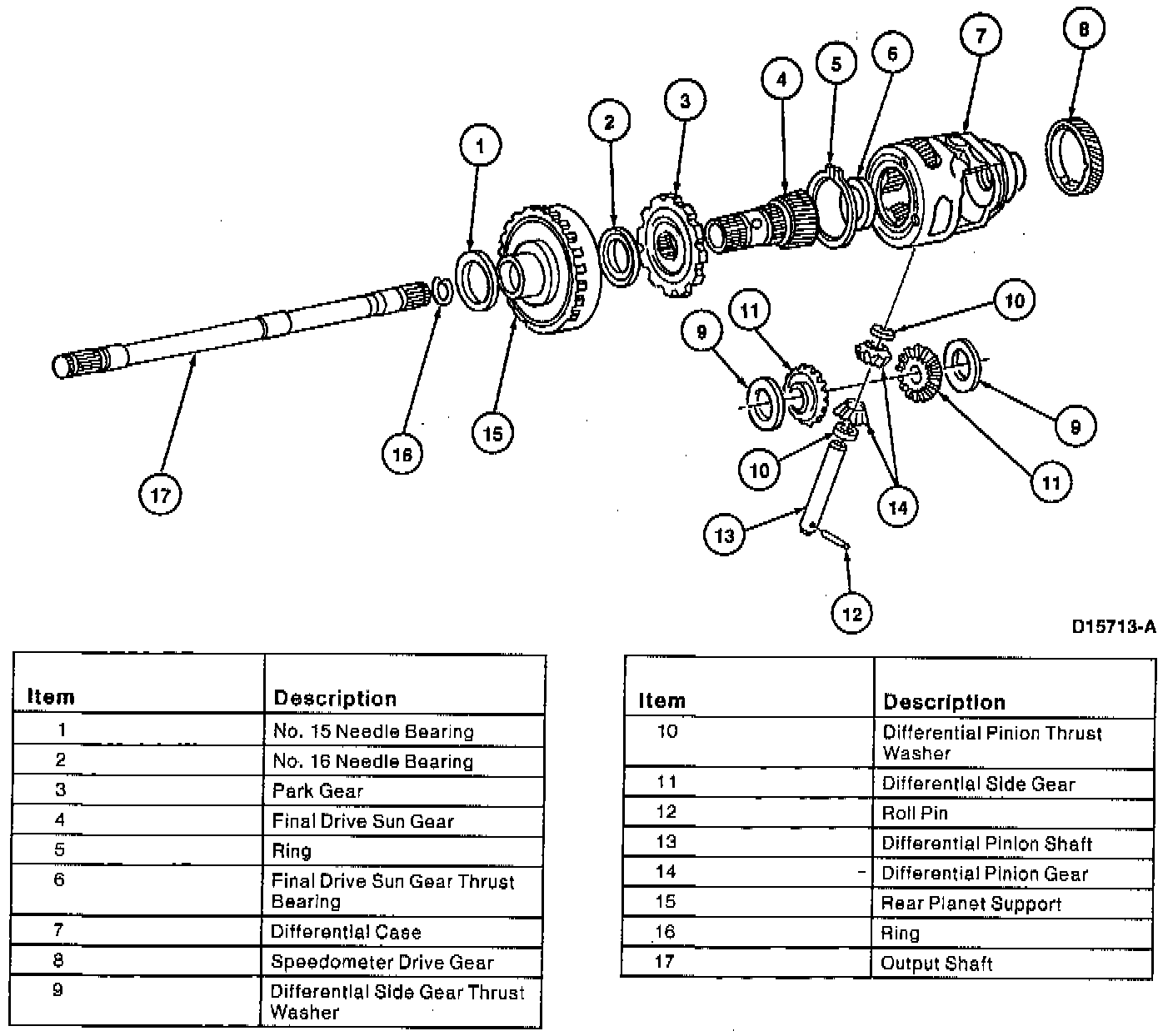

Final Drive Assembly:
