Radio/Stereo
>>
Rear Control Unit
Rear Control Unit

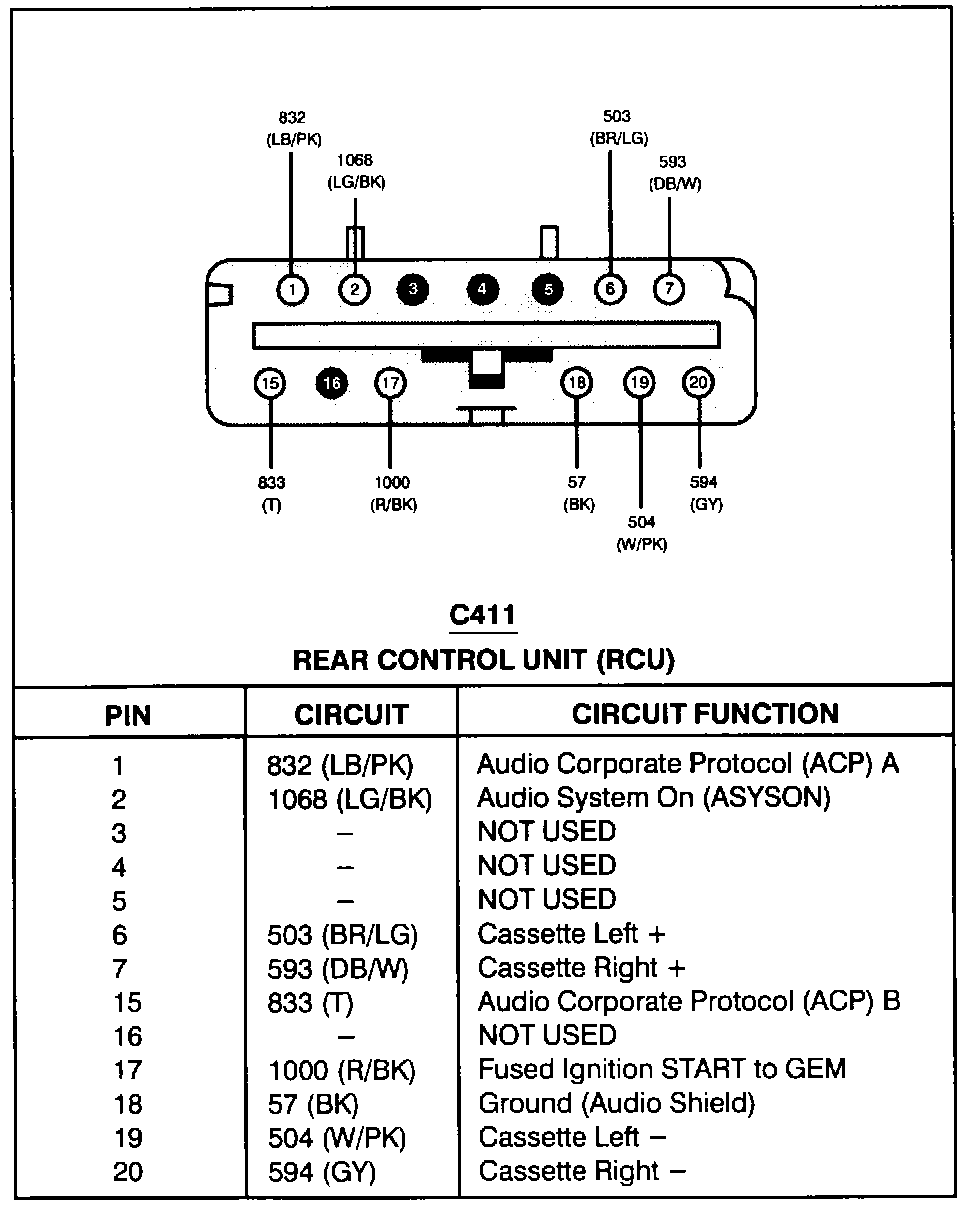

Rear Control Unit (C411):

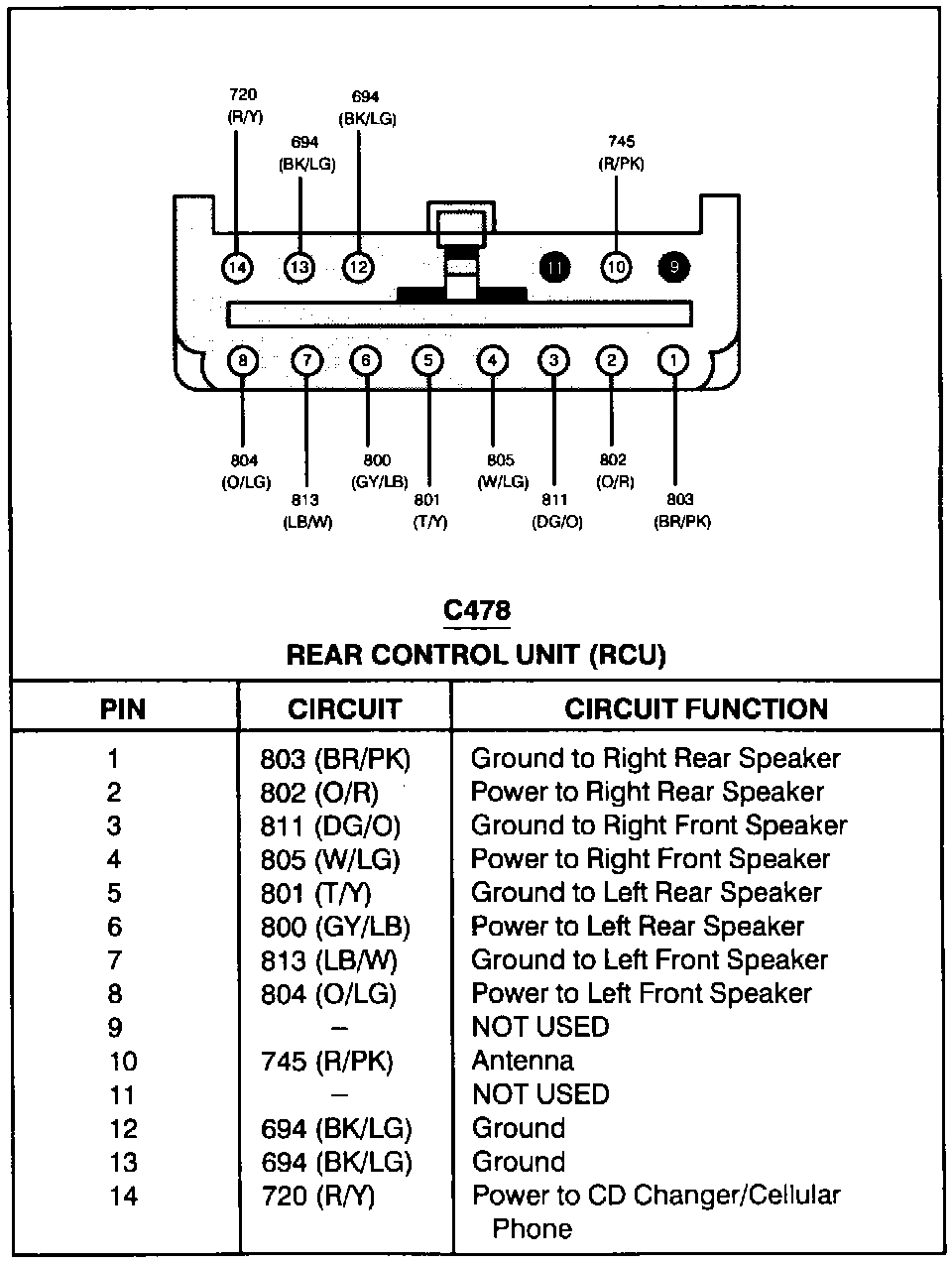

Rear Control Unit (C478):
