X - Constant Control Relay Module (CCRM)
>>

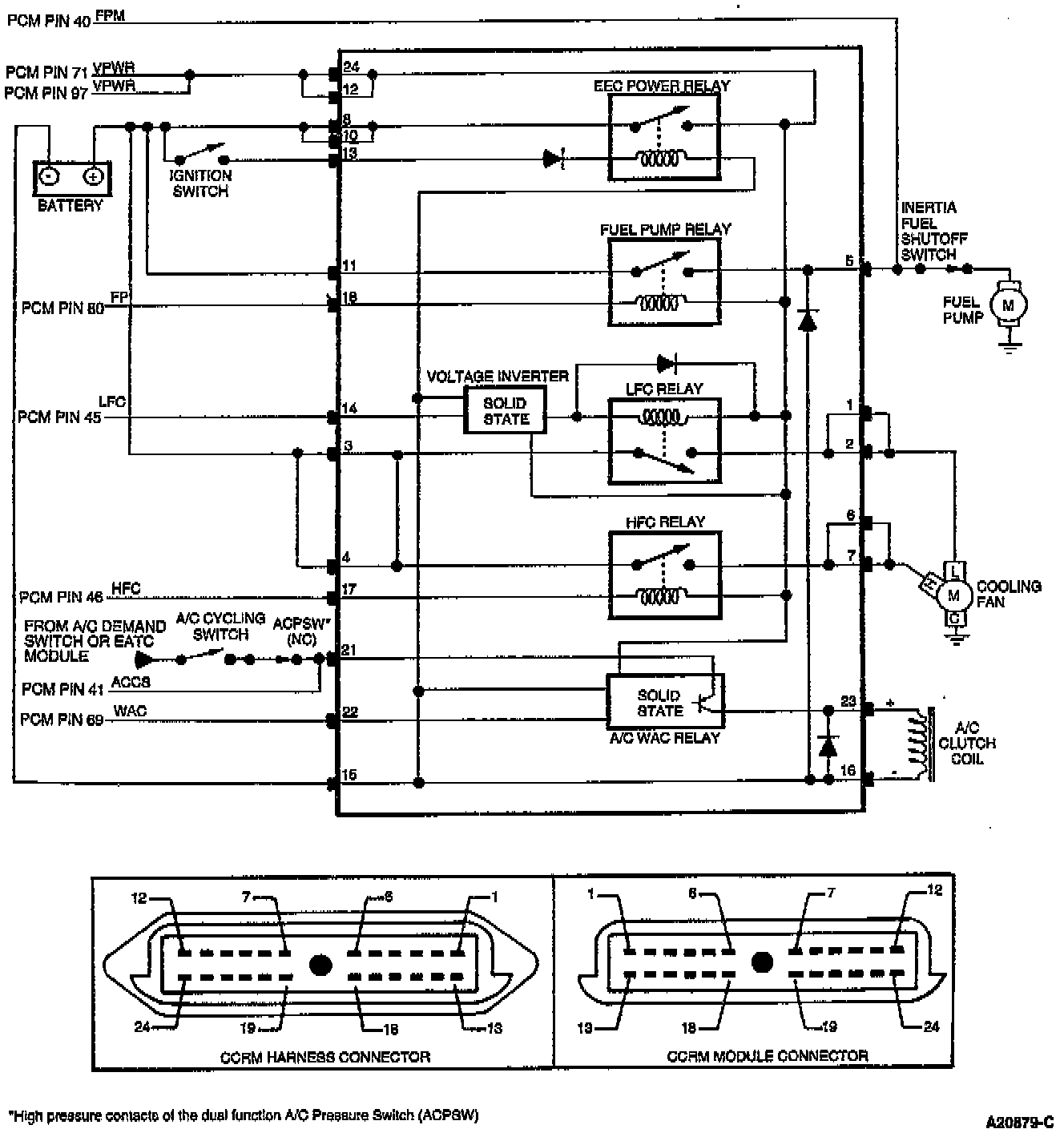

Test Schematic
Test Schematic
4.6L(2V) Mustang, Thunderbird/Cougar:
