Home
>>
Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor
>>

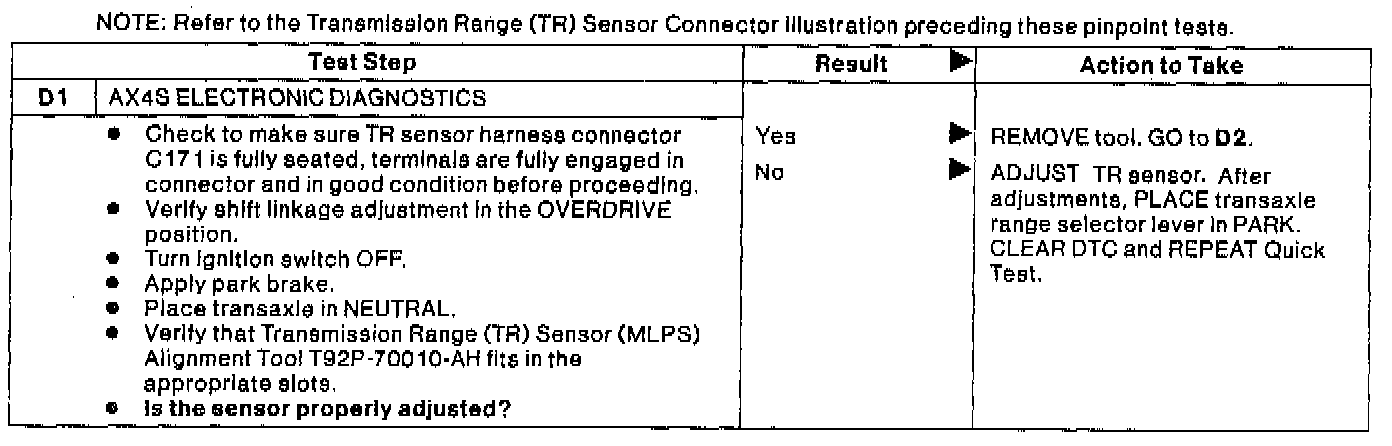

D1
>>
AX4S
AX4S

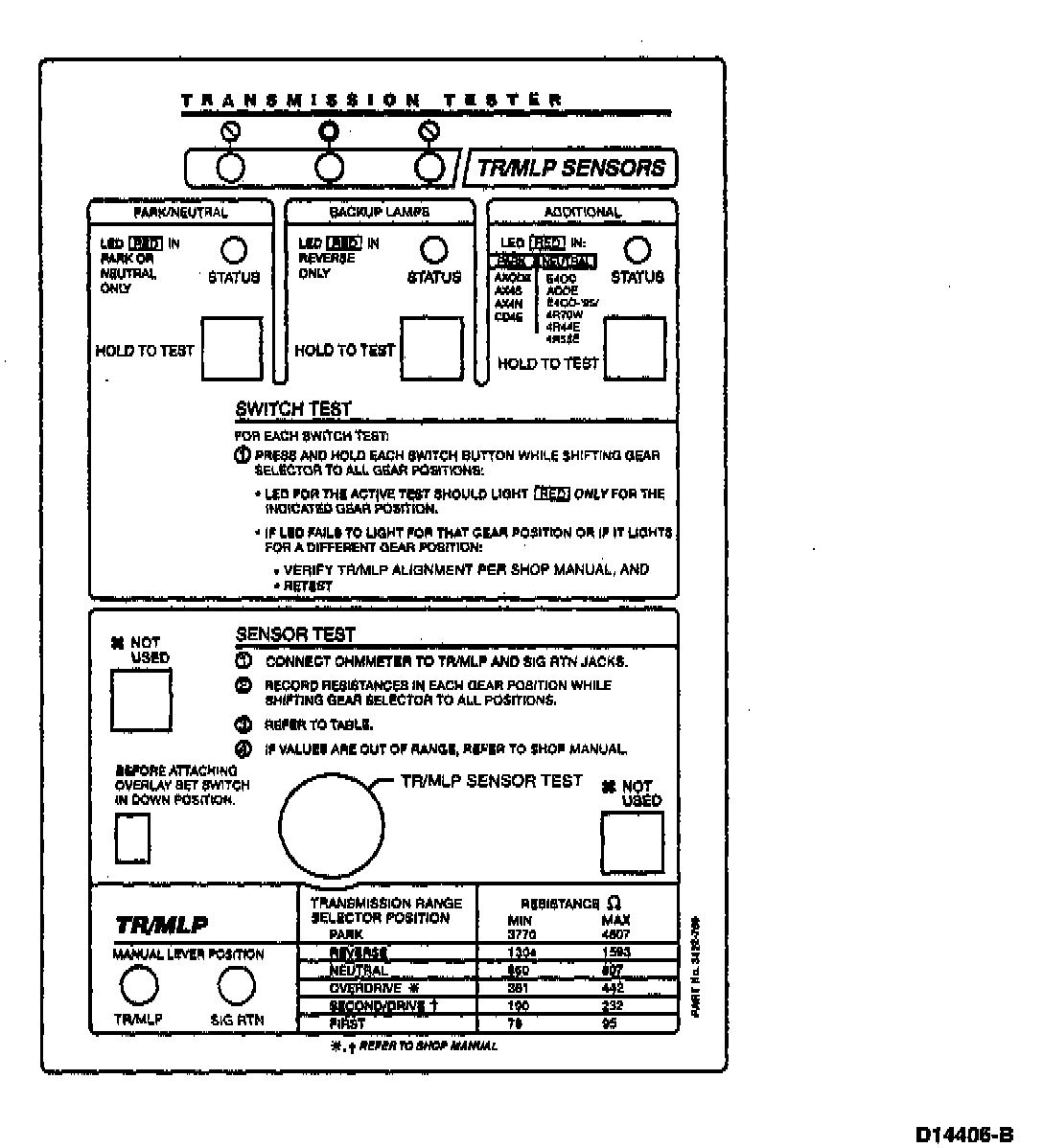

Rotunda Transmission Range TR Sensor/Manual Lever Position MLP Switch Testing Overlay:
