Home
>>
Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
With AX4N Transmission
With AX4N Transmission

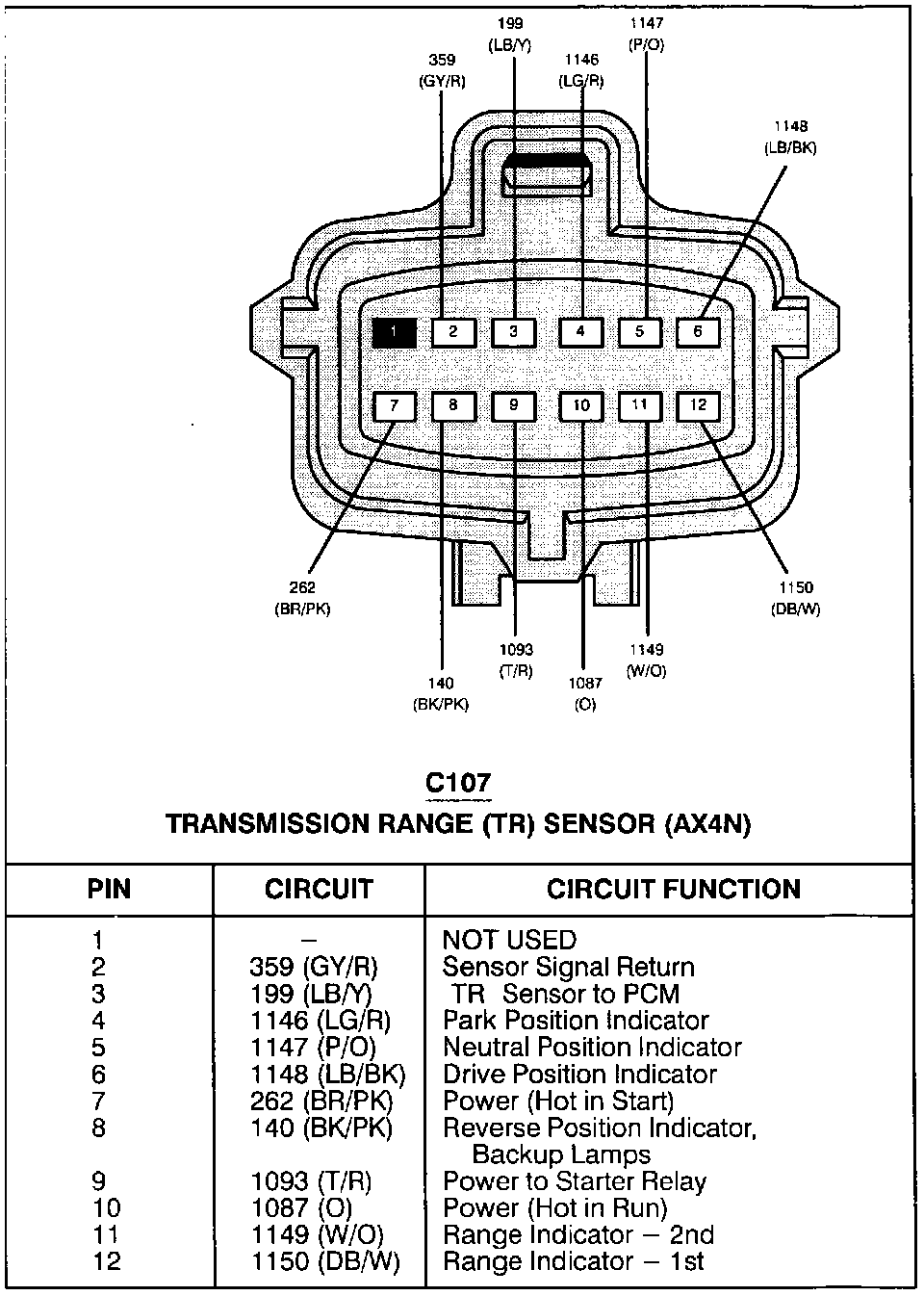

Transmission Range Sensor (AX4N):
