Home
>>
Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>

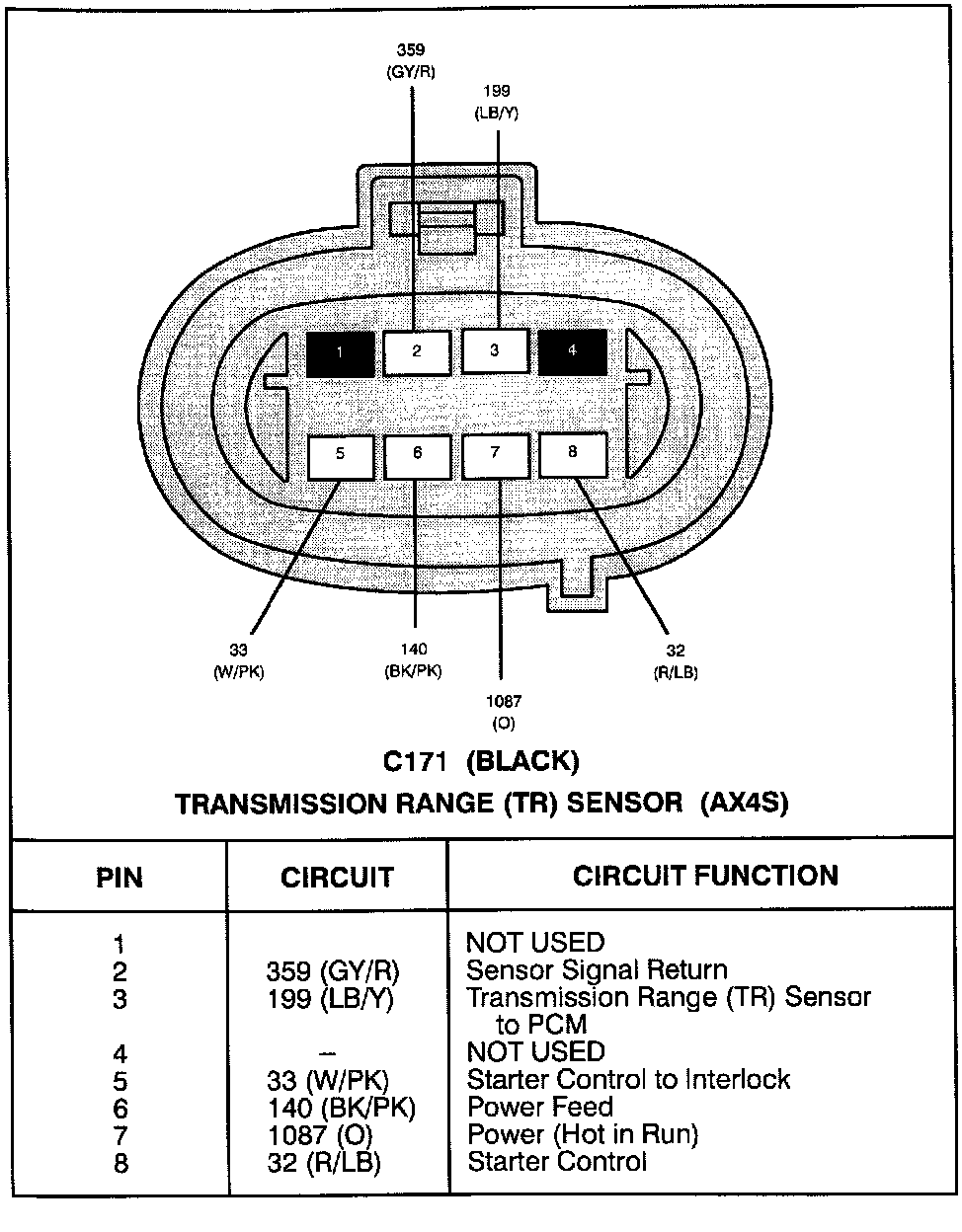

C171 Transmission Range Sensor (AX4S)
C171 Transmission Range Sensor (AX4S)
