Home
>>
Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
>>

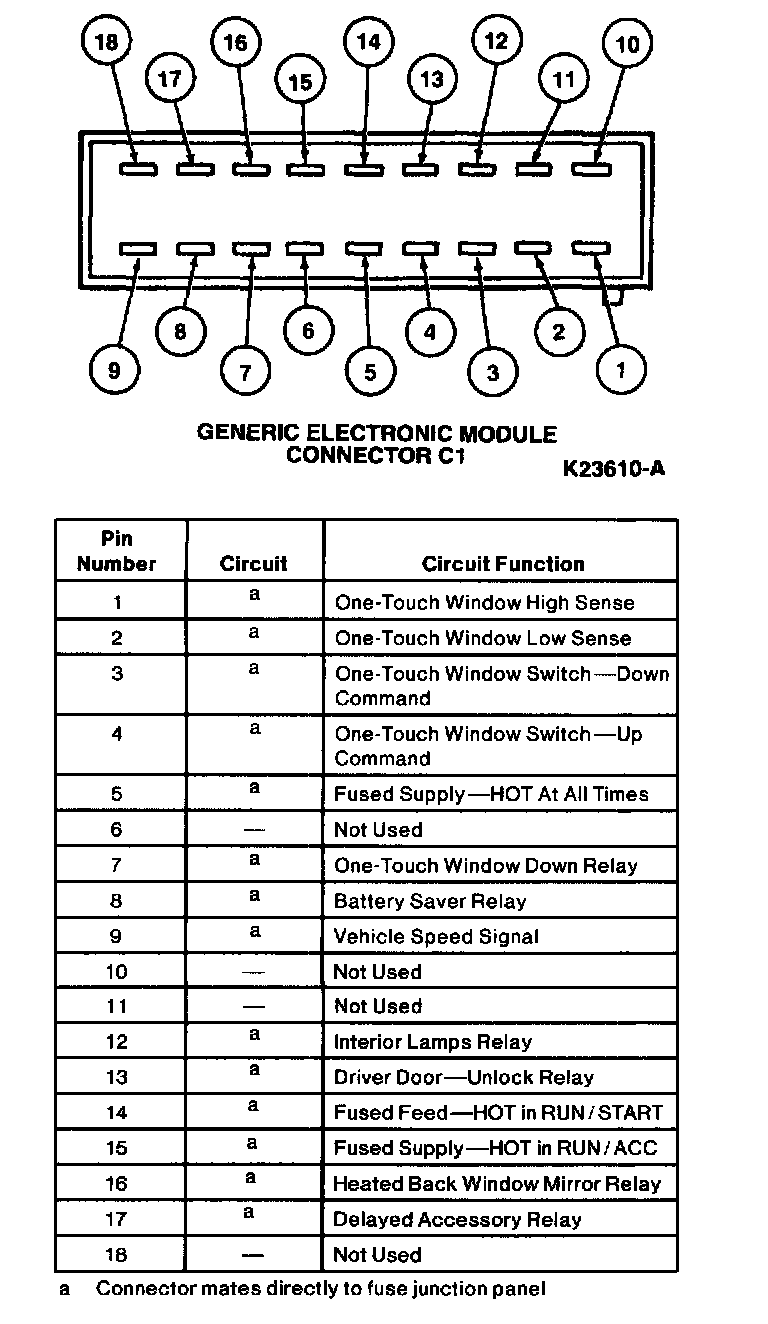

Generic Electronic Module (GEM) Connector C1
Generic Electronic Module (GEM) Connector C1
