Home
>>
Ford
>>
1996
>>
Taurus V6-182 3.0L FF
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

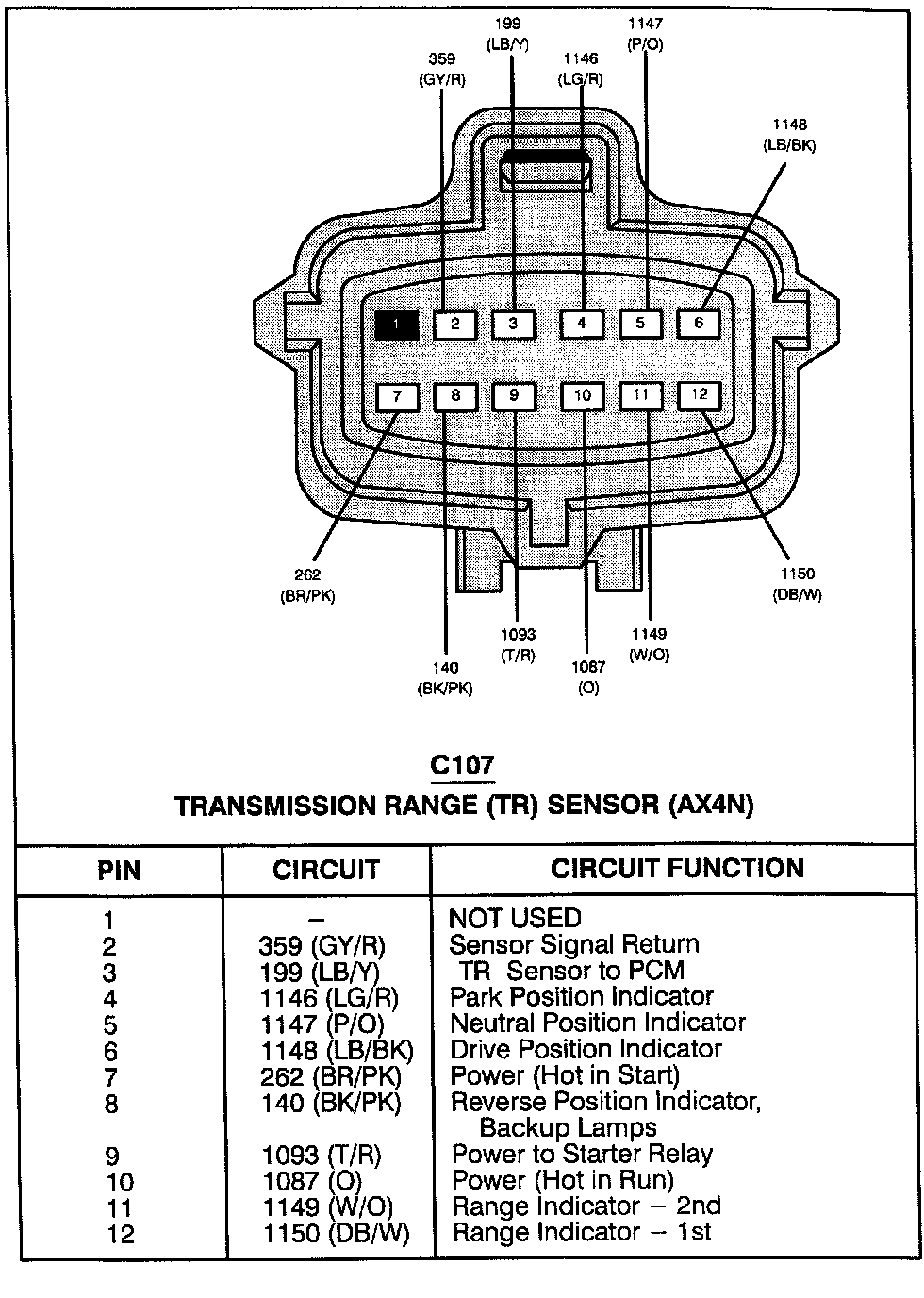

C107 Transmission Range Sensor (AX4N)
C107 Transmission Range Sensor (AX4N)
