Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C151
C151

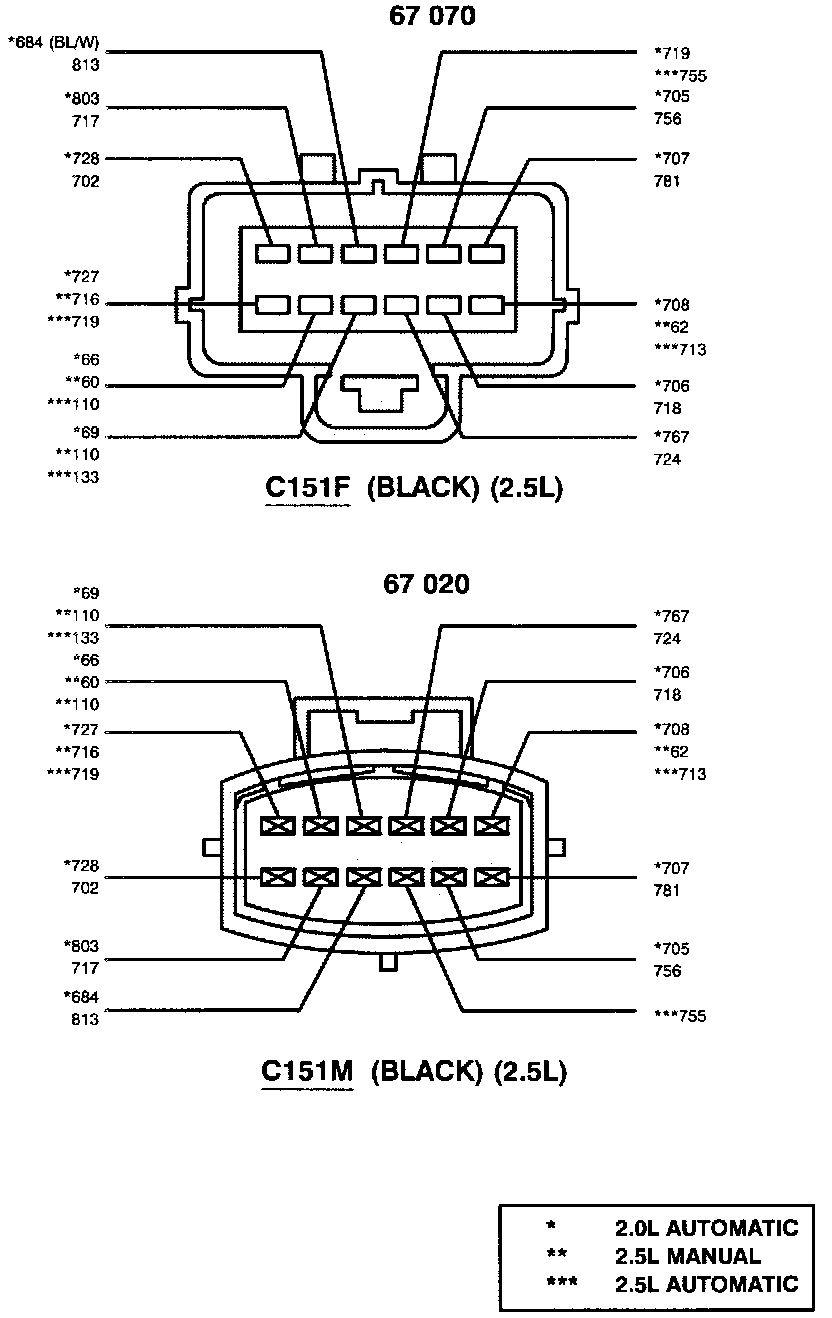

In-Line Connector Faces - C151:
