Home
>>
Ford
>>
1996
>>
Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Integrated Control Relay Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

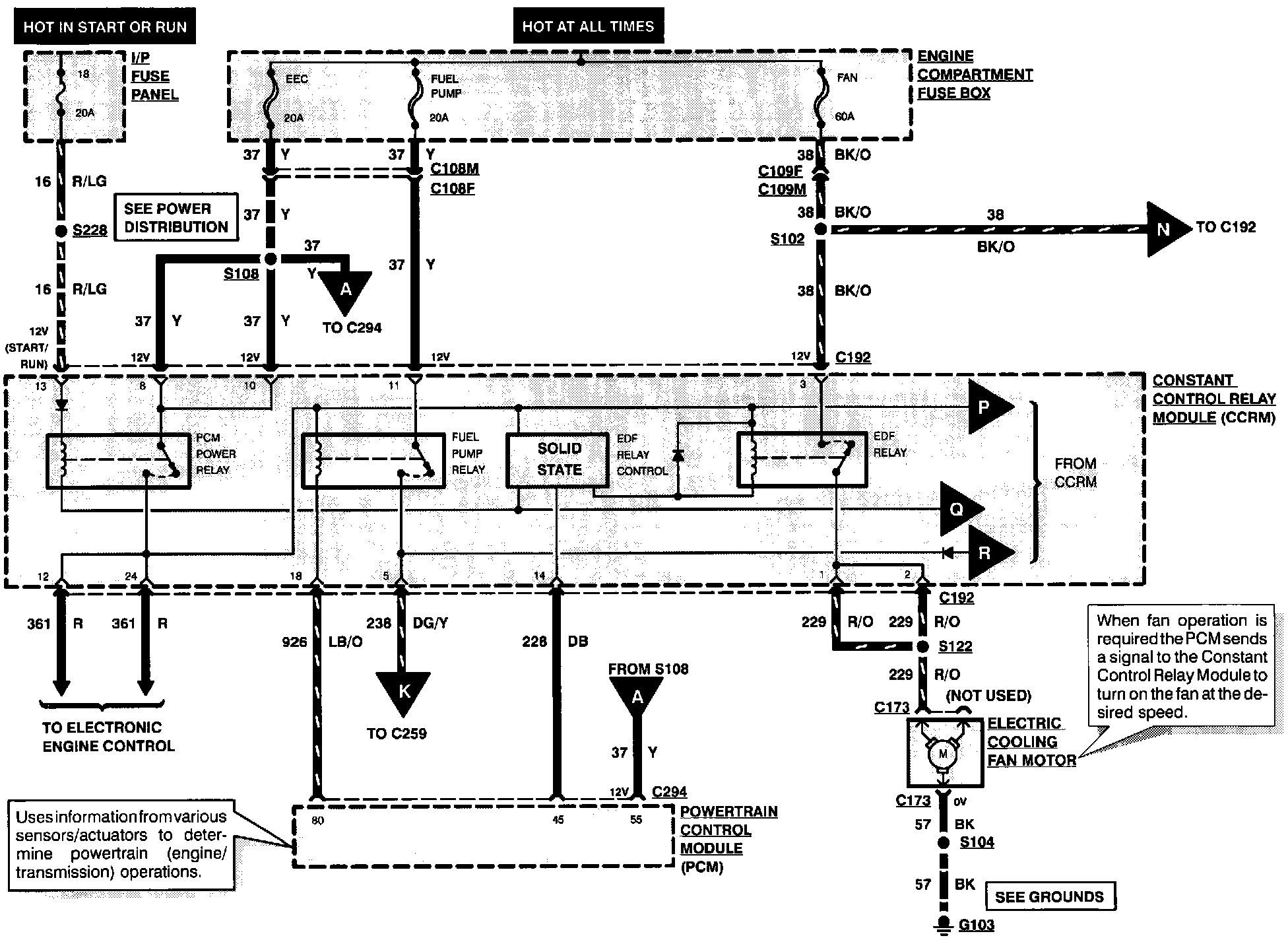

Electronic Engine Control (Part 7 Of 8):
