Home
>>
Ford
>>
1995
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

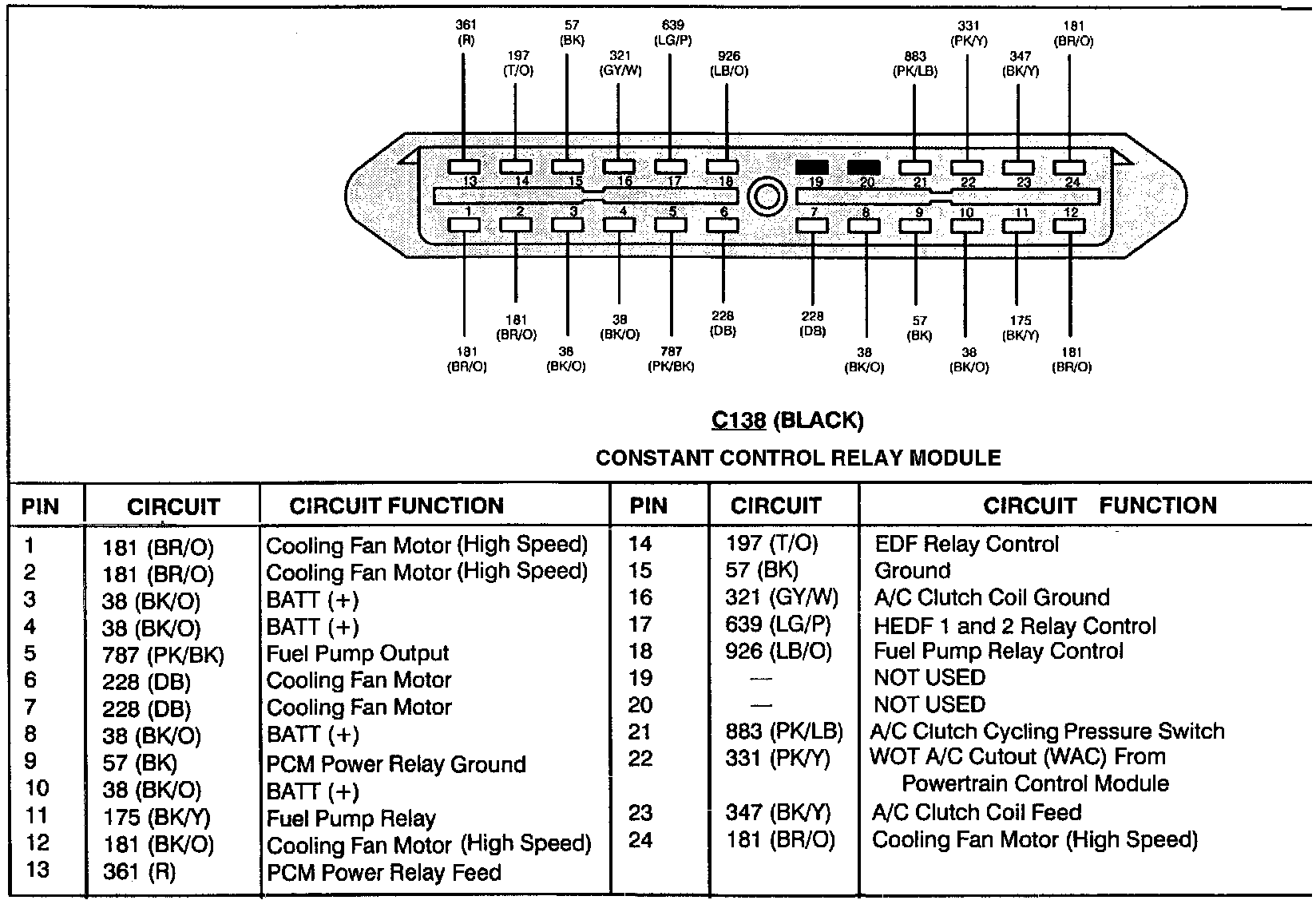

Integrated Control Relay Module
Integrated Control Relay Module
c�Constant Control Relay Module:
