Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>
Function Diagrams
Function Diagrams

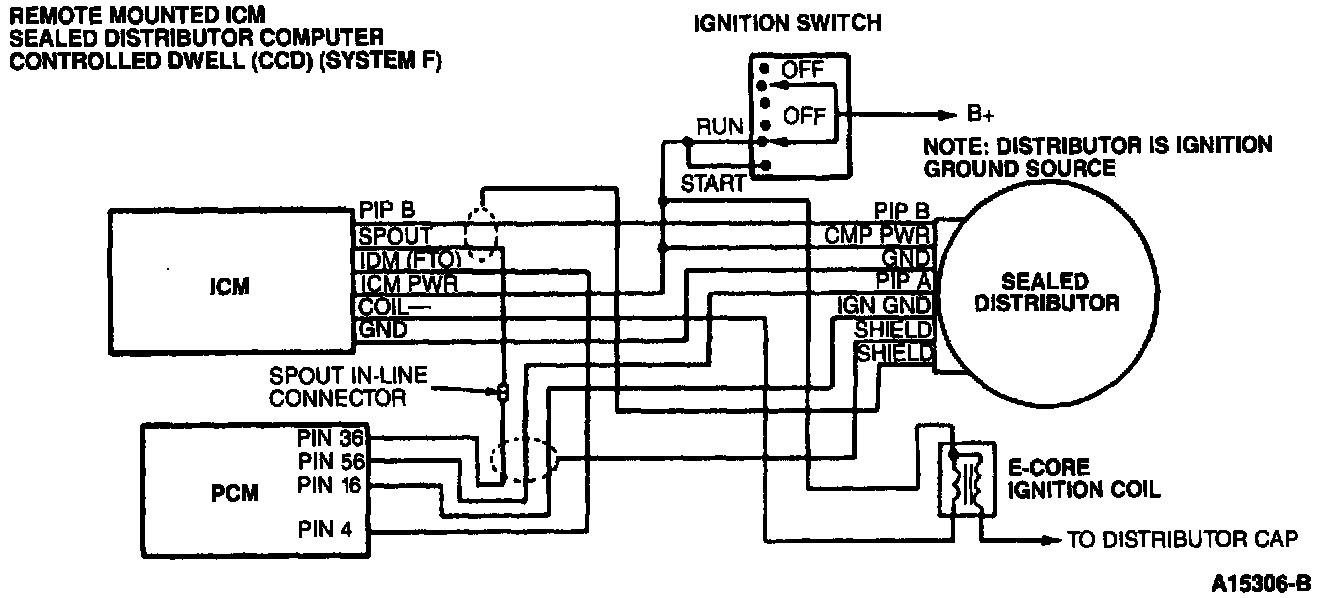

Distributor Ignition (DI) System F:
