Control Assembly, HVAC
>>
Temperature Control Switch
>>
Jumper Connector With Manual A/C
>>
Part 2
Part 2

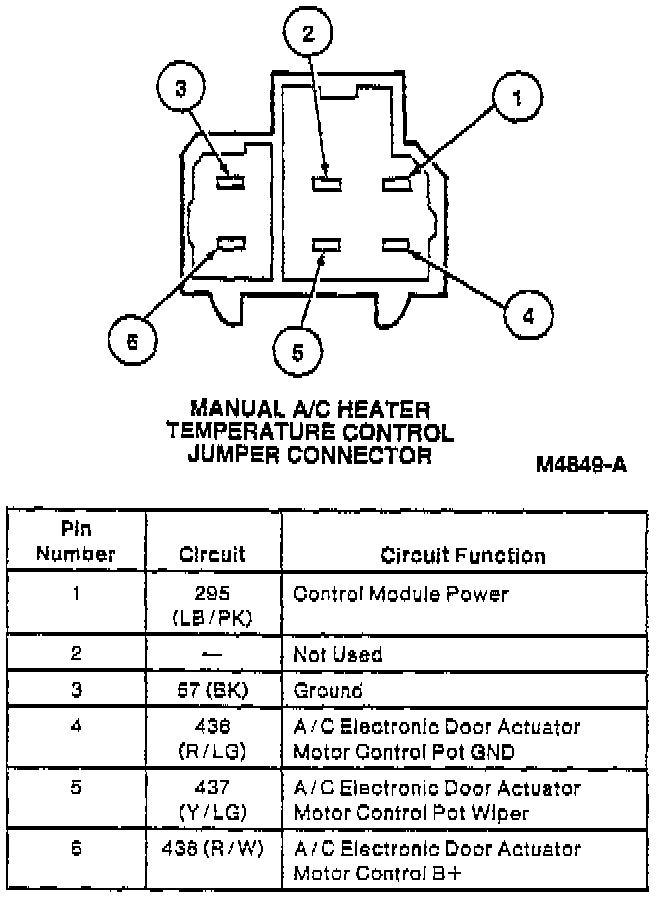

Connector End View (Part 2):
