Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Temperature Control Switch
>>
Jumper Connector With Manual A/C
>>
Part 1
Part 1

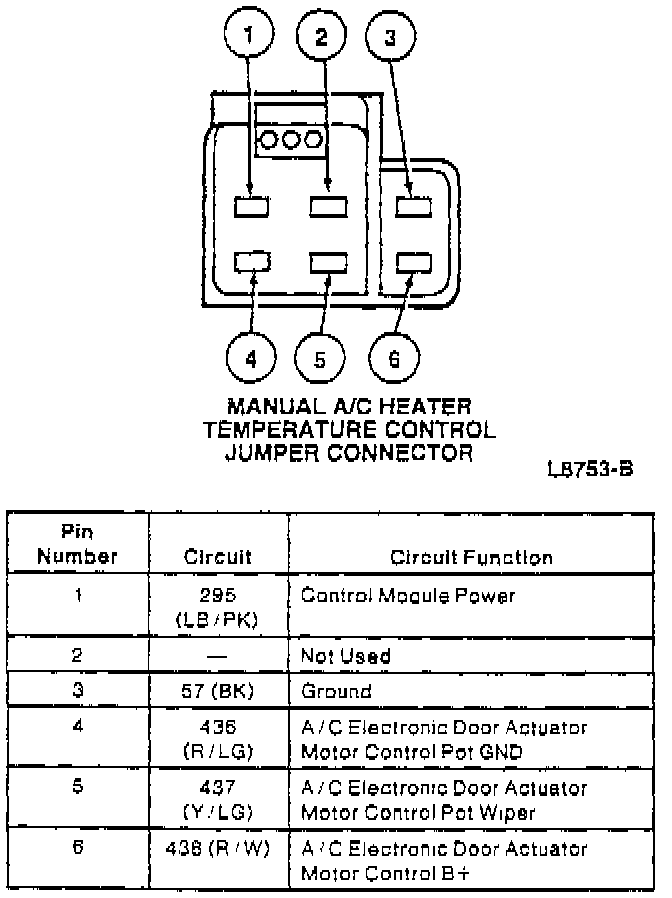

Connector End View (Part 1):
