Home
>>
Ford
>>
1995
>>
Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

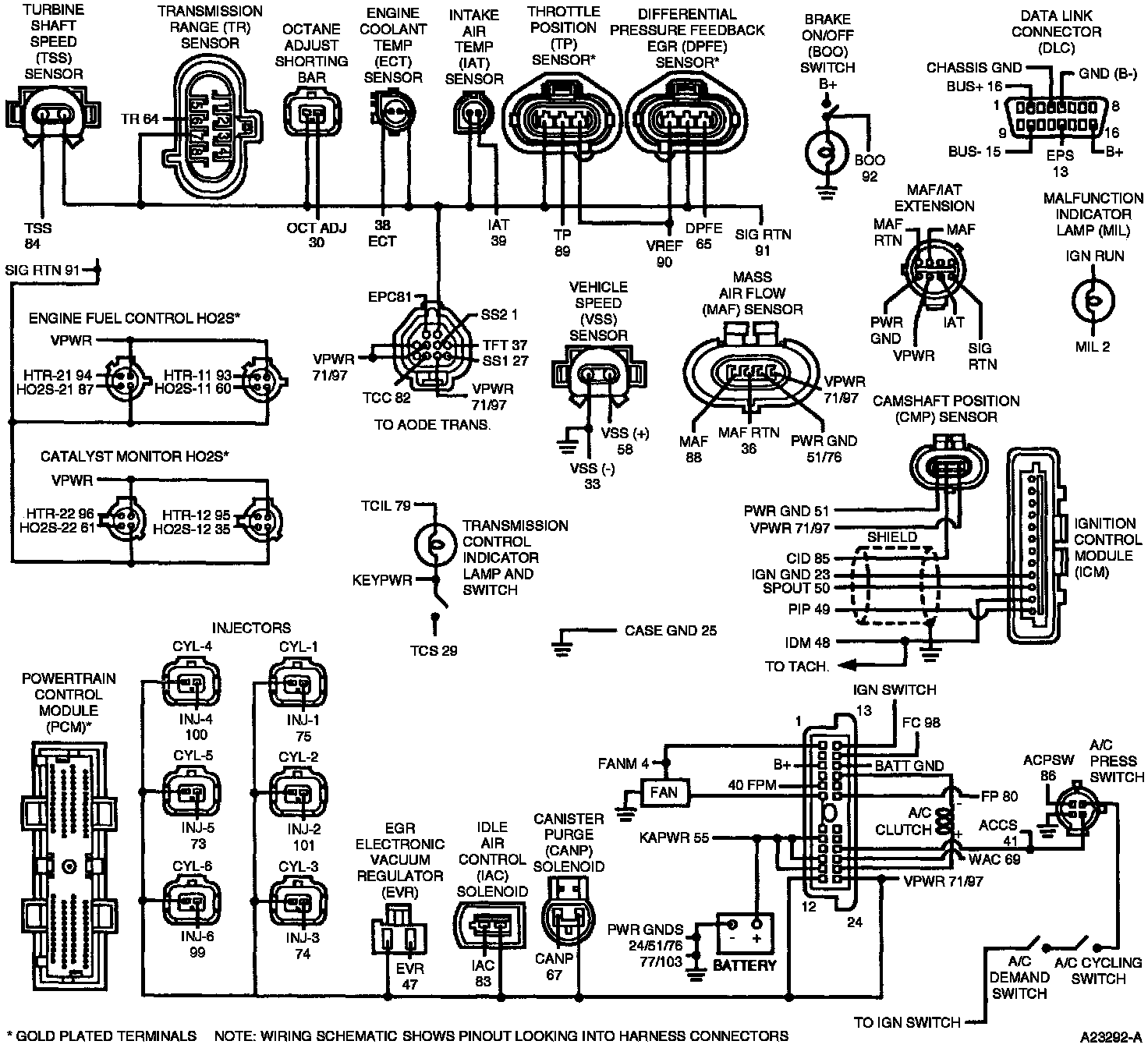

Electrical Schematic (Part 1 0f 3):
